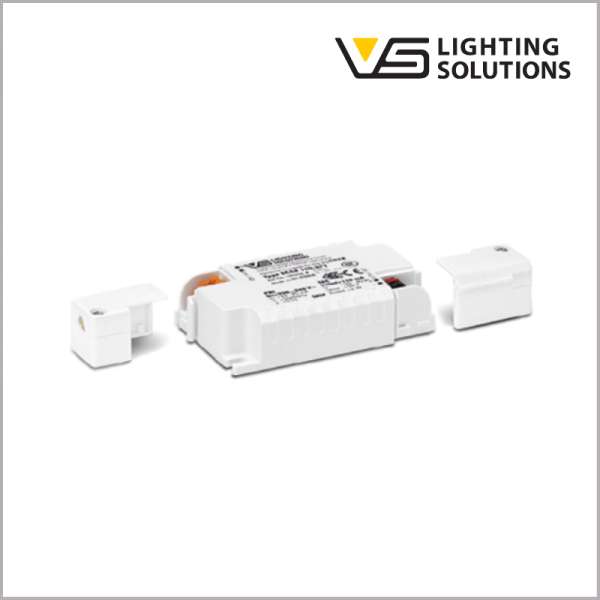

Vossloh-Schwabe Phase Cut Compact Dimmable Drivers

0 Review
AED 23.63

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
VSPCCDD

Electrical Features

  • Mains voltage: 220–240 V ±10%
  • Mains frequency: 50–60 Hz
  • Push-in terminals: 0.5–1.5 mm²
  • Power factor at full load: 0.99
  • Open circuit voltage (Umax.): 60 V
  • Secondary side switching of LED modules is not allowed.

Electrical Characteristics

Max Output Watts
Main Current mA
Current Output DC mA
Voltage Output DC
Efficiency at Full Load
4 23 100 29-40 78.5
6 33 150 29-40 80
8 44 200 29-40 81
10 52 250 29-40 84.5
14 72 350 29-40 85.5



For Bulk Orders Just ping us on Whatsapp. + 971 50 7749157

Safety Features

  • Protection against transient main peaks up to 1 kV (between L and N)
  • Electronic short-circuit protection
  • Overload protection
  • Protection against "no load" operation
  • Degree of protection: IP20
  • Protection class II
  • SELV

Standards

  • EN 61347-1, EN 61347-2-1, EN 61547, EN 61000-3-2, EN 62384, EN 55015
