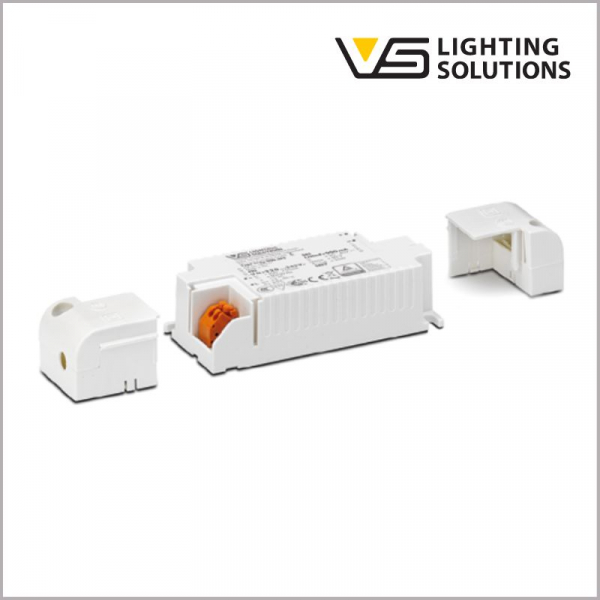

main product photo

Vossloh-Schwabe Compact Drivers

0 Review
AED 19.16

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
VSCOMDRV

Electrical Features

  • Mains voltage: 220–240 V ±10%
  • Mains frequency: 50–60 Hz
  • Push-in terminals primary: 0.5–1.5 mm², secondary: 0.75–1.5 mm²
  • Power factor at full load: 0.97 / 0,99 with 186941, 186930
  • Open circuit voltage (Umax.): 60 V
  • Secondary side switching of LED modules is not allowed.

Electrical Characteristics

Max Output Watts
Main Current mA
Current Output DC mA
Voltage Output DC
Efficiency at Full Load
10 51-47 250 26,5-38 86
12 63-56 300 27-38 86
14 72-64 350 27,8-38,8 87
16 95-85 400 30-40,6 89
21 110-100 500 30-40,6 88
24 130-117 600 30-40 89
28 160-120 700 30-40 89
32 190-140 800 30-40 90
38 210-140 950 31-40 89
42 230-150 1050 31-40 89



For Bulk Orders Just ping us on Whatsapp. + 971 50 7749157

Safety Features

  • Protection against transient main peaks up to 1 kV (between L and N)
  • Electronic short-circuit protection
  • Overload protection
  • Protection against "no load" operation
  • Degree of protection: IP20
  • Protection class II
  • SELV

Dimensions

  • Casing shape: K33.4
  • Length: 97 mm
  • Width: 43 mm
  • Height: 25 mm

Standards

  • EN 61347-1, EN 61347-2-13, EN 61547, EN 61000-3-2, EN 62384, EN 55015
More Information
product brand VOSSLOH-SCHWABE
