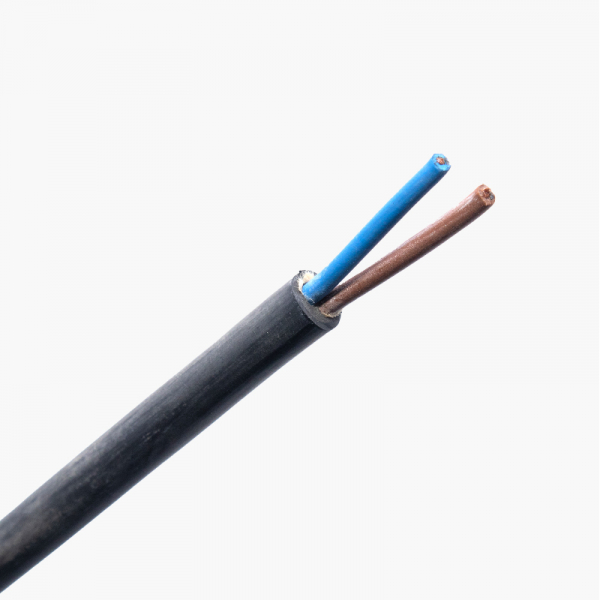

Siechem Rubber Insulated Black Flexible Cable

 CABLE CONSTRUCTION

 Conductors

 Annealed Copper conductor, Class 5 flexible conductor

 Insulation

 Rubber compound Type EI 1

 Braiding

 Textile braid

 braided cores twisted together

 TECHNICAL DATA

 Temperature Range

      Fixed :  -35DegC to +70DegC
      Flexing :  -15DegC to +70DegC

 Rated Voltage (U /U)

 300/500V

 Test Voltage

 1.5 x rated voltage

 Bending Radius (Min)

 10 x OD

 Typical applications are:

 Used for measuring, controlling, or regulating control equipment for conveyors and control units.
 Fixed installation and for flexible use when temporarily moved in medium mechanical condition
 Used outdoors when protected and in dry or moist conditions indoors.

 Features:

 Flame retardant
 Flexibility
 Medium Mechanical Stress.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
