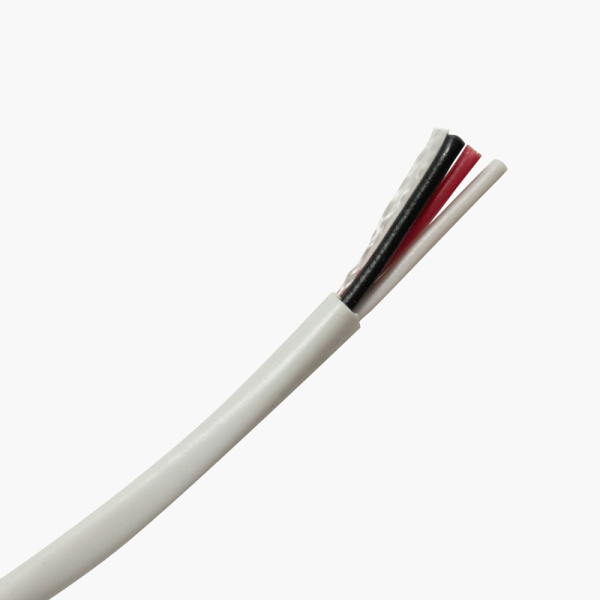

Paige 741803CMR 18AWG-3C Stranded, Unshielded, PVC White jacket Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .007”
 2.3 Color code:
              1-Black
              2-Red
              3-White

 3. Jacket

 3.1 Material: PVC
 3.2 Wall Thickness: .015” nom.
 3.3 OD: .157” nom.
 3.4 Color: White
 3.5 Ripcord Under Jacket
 3.6 Markings: PAIGE 741803CMR E191596 18AWG 3C (UL) CMR C(UL)US OR (UL)
       CL3R 75’C SUN RES FT-4 ROHS COMPLIANT”
       (Ascending/Descending Sequential Footage Markers)

 4. Voltage

 4.1 300 Volt

 Scope:

 This cable consists of 3 conductors 18 AWG stranded bare copper; color-
 coded PVC insulation; overall PVC Jacket.
 Type CMR C(UL)US CL3R
 RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
