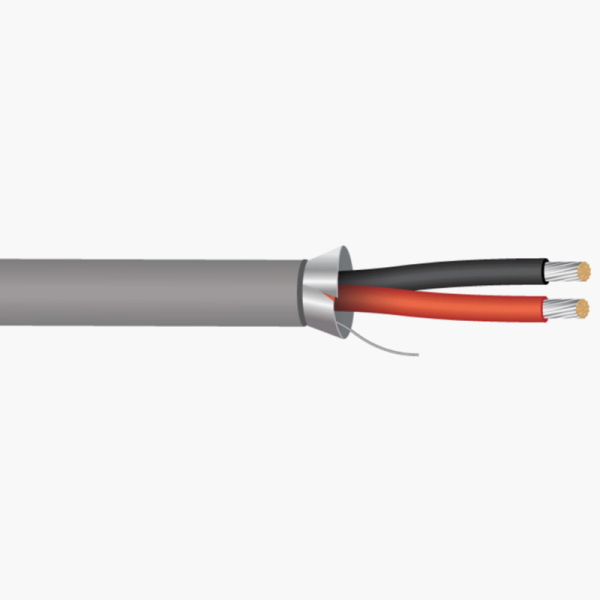

Paige 459841NH 24AWG-1 Pair Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 24 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .023”
 2.3 Color code:
                 1-White/Blue
                 2-Blue/White

 3. Assembly

 3.1 Lay Length: 2.25” LHL nom. (5.33 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Braid

 6.1 Material: Tinned Copper
 6.2 Coverage: 90%

 7. Jacket

 7.1 Material: Low Smoke Zero Halogen Polyolefin
 7.2 Wall Thickness: .035”
 7.3 OD: .223” nom.
 7.4 Color: Gray
 7.5 Ripcord under jacket
 7.6 Markings: PAIGE #459841NH LSZH 24AWG 1 PR SHIELDED 75’C 300V ROHS
       COMPLIANT MADE IN USA (Ascending/Descending footage markers)

 8. Electrical

 8.1 Impedance: 120 ohms +/- 10%
 8.2 Capacitance: 11.3 pF/ft.
 8.3 DC Resistance: 24.0 ohms/M ft. @ 20degC
 8.4 Voltage: 300 Volts max.

 Scope

 This cable consists of 1 pair 24 AWG stranded tinned copper; color-coded Polyethylene insulation; overall

 aluminum Mylar shield with drain wire; braid shield; overall low smoke zero halogen Polyolefin jacket.

 RoHS Compliant
