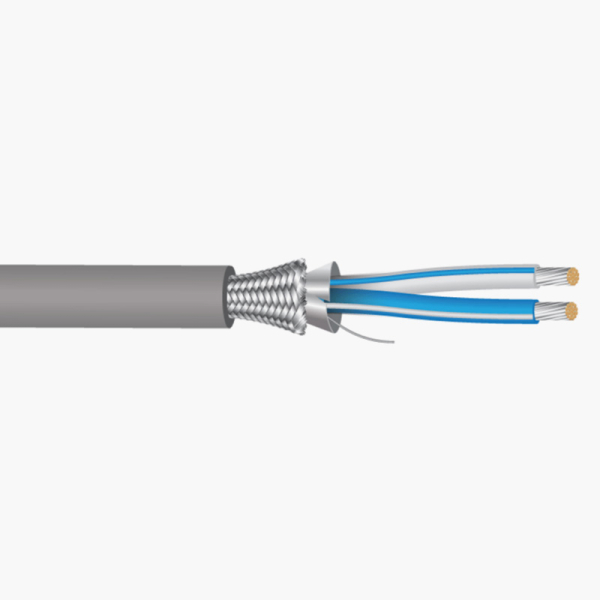

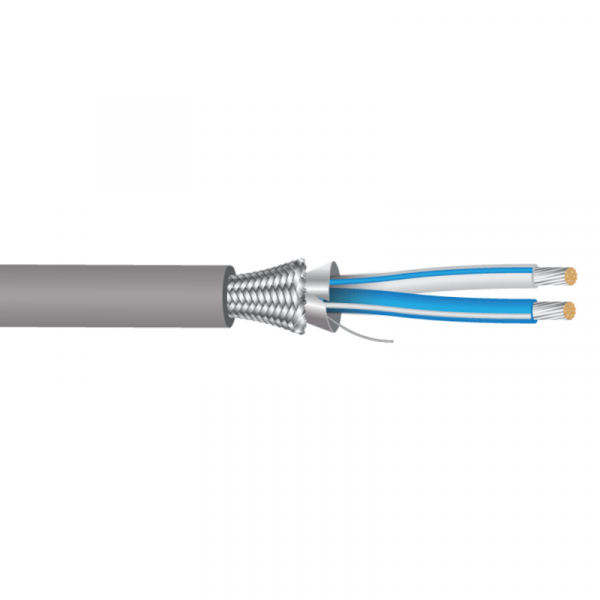

Paige 459841, 2 Core 24 AWG Stranded Tinned Copper, Overall Shield and Tinned Copper Braid, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 24 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Plenum Rated Foam FEP (low smoke & fume)
 2.2 Wall Thickness: .016”
 2.3 Color code:
              White/Blue x Blue/White

 3. Assembly

 3.1 Lay Length: 1.75 LHL nom. (6.85 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Braid

  6.1 Material: Tinned Copper
 6.2 Size: 36 AWG
 6.3 Coverage: 90%

 7. Jacket

 7.1 Material: Plenum Rated PVC (low smoke & fume)
 7.2 Wall Thickness: .015”
 7.3 OD: .165” nom.
 7.4 Color: White
 7.5 Ripcord under jacket
 7.6 Markings: PAIGE #459841LSF E191596 24AWG 2C (UL) CMP C(UL)US OR (UL)
       CL3P OR (UL) FPLP 150’C FT-6 ROHS II COMPLIANT LOW SMOKE FUME
       MADE IN USA (Ascending/Descending footage markings)

 8. Electricals

 8.1 Impedance: 102 ohms +/- 10%
 8.2 Capacitance: 12.8 pF/ft.
 8.3 DC Resistance: 24.5 ohms/M ft.@ 20oC
 8.4 Voltage: 300 Volt max.

 SCOPE:

 This cable consists of 2 conductors 24 AWG stranded tinned copper; color-coded plenum rated foam FEP (low

 smoke & fume) insulation; overall aluminum mylar shield with drain wire; tinned copper braid; overall plenum

 rated PVC (low smoke & fume) jacket.

 RoHS II & REACH Compliant

 Application

 Communication Cable
