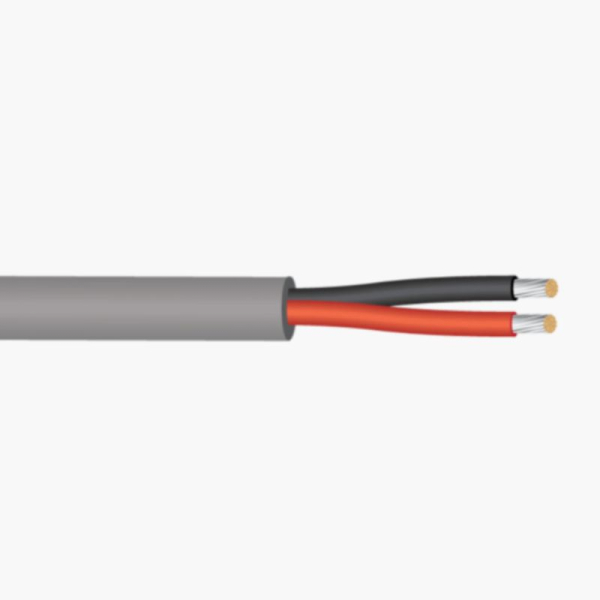

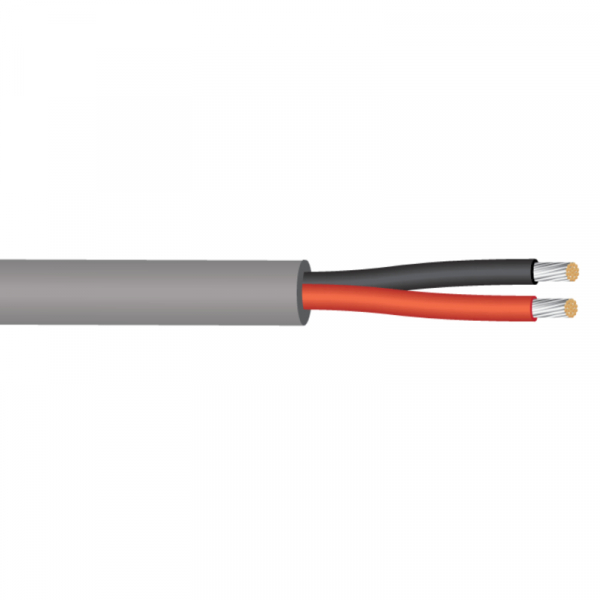

Paige 459740NH, 2 Core 18 AWG Stranded Tinned Copper, Unshielded, LSZH, Roll of 305 MTR

Details

CABLE CONSTRUCTION

1. Conductors

1.1 Material: Tinned Copper
1.2 Size: 18 AWG
1.3 Construction: 16 Strand

2. Insulation

2.1 Material: Polyethylene
2.2 Wall Thickness: .013”
2.3 Color code:
1-Black
2-Red

3. Assembly

3.1 Lay Length: 2.25” LHL (5.33 tw/ft)

4. Jacket

4.1 Material: Low Smoke Zero Halogen Polyolefin
4.2 Wall Thickness: .032”
4.3 OD: .208” nom.
4.4 Color: Gray
4.5 Ripcord under jacket
4.6 Markings: PAIGE #459740NH LSZH 18AWG 2C 75C 300V RoHS II COMPLIANT
MADE IN USA (Ascending/Descending footage markings)

5. Electrical Properties

5.1 Capacitance: 17.3 pF/ft.
5.2 Impedance: 88.6 ohms +/- 10%
5.3 DC Resistance: 6.48 ohms/M ft.
5.4 Voltage: 300 Volts max.

SCOPE:

This cable consists of 2 conductors 18 AWG stranded tinned copper; color-coded
Polyethylene insulation; overall low smoke zero halogen Polyolefin jacket.

RoHS II Compliant
