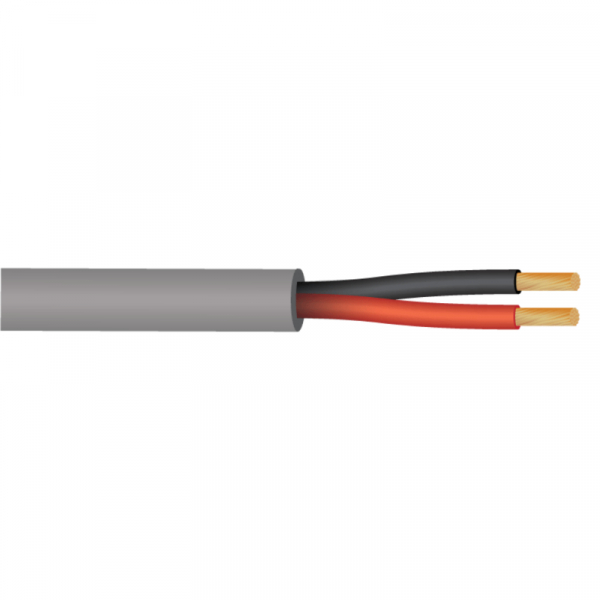

Paige 459740, 2 Core 18 AWG Stranded Tinned Copper, Unshielded, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 18 AWG
 1.3 Construction: 16 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .014” nom.
 2.3 Color code:
              1-Black
              2-Red

 3. Jacket

 3.1 Material: PVC
 3.2 Wall Thickness: .032” nom.
 3.3 OD: .212” nom.
 3.4 Color: Gray
 3.5 Markings: PAIGE #459740 E191596 18AWG 2C (UL) CMG C(UL)US 75oC FT-4
       OR AWM 2464 300V 80oC VW-1 RoHS” (Ascending/Descending footage markings)

 SCOPE:

 This cable consists of 2 conductors 18 AWG stranded tinned copper; color-
 coded PVC insulation; overall PVC Jacket. Type CMG c(UL)us or AWM 2464
 RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
