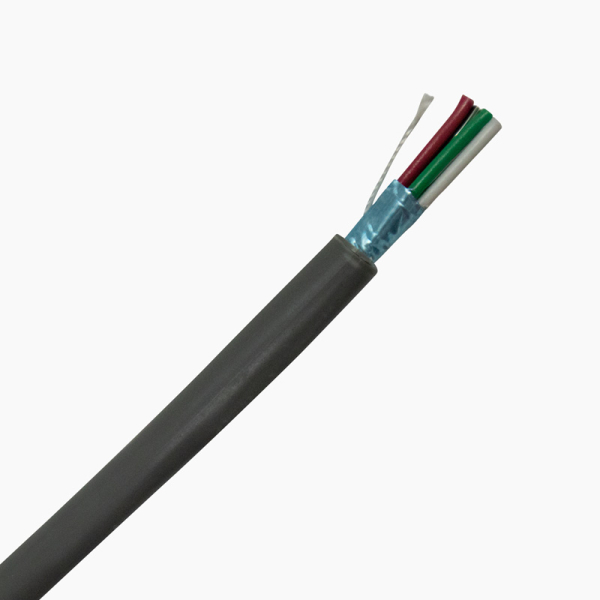

Paige 459402 20AWG-2 Pair Stranded, Individually Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 20 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .011”
 2.3 Color code:
        1-Black/Red
        2-White/Green

 3. Cabling Overall Lay

 3.1 2 1⁄2” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 20 AWG
 5.3 Construction: 19 Strand

 6 Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .041”
 6.3 OD: .300” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #459402 20 AWG 2 SHIELDED PAIRS c(UL)us TYPE CMG OR
       AWM 2464 E191596 MADE IN USA (Sequential Footage Markers)

 7 Electrical Properties

 7.1 Temperature: -20DegC - +80DegC
 7.2 Voltage: 300 Volts
 7.3 Capacitance: (CDR-CDR) 55 pF/ft.
       (CDR-SHLD) 95 pF/ft.

 SCOPE:
 This cable consists of 2 pair 20 AWG stranded tinned copper; color-coded PVC insulation; individual aluminum
 Mylar shields with drain wires; overall PVC jacket. Type CMG / AWM Style 2464
 RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
