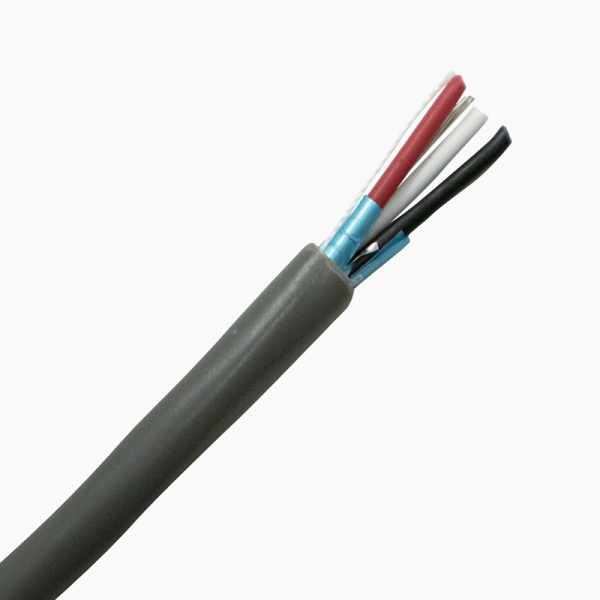

Paige 458772 20AWG-3C 7 Stranded, Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 20 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .017”
 2.3 Color code:
              1-Black, 2-Red, 3-White

 3. Shield

 3.1 Material: Aluminum Mylar
 3.2 Coverage: 100%

 4. Drain

 4.1 Material: Tinned Copper
 4.2 Size: 20 AWG
 4.3 Construction: 7 Strand

 5. Jacket

 5.1 Material: PVC
 5.2 Wall Thickness: .033”
 5.3 OD: .218” nom.
 5.4 Color: Gray
 5.5 Ripcord under jacket
 5.6 Markings: PAIGE 458772 E191596 20/3C OAS (UL) TYPE CM “RoHS COMPLIANT”
       ASCENDING / DESCENDING FOOTAGE MARKINGS

 6. Electrical Properties

 6.1 Temperature: -20 ̊C to 60 ̊C
 6.2 Voltage: 300 Volt
 6.3 Capacitance: 27 pF/ft.
 6.4 DC Resistance: 10.0 Ohms/M’ @ 20degC

 Scope

This cable consists of 3 conductors 20 AWG stranded tinned copper; color-coded Polyethylene insulation; overall

 aluminum mylar shield with drain wire; overall gray PVC Jacket. Type CM

 RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
