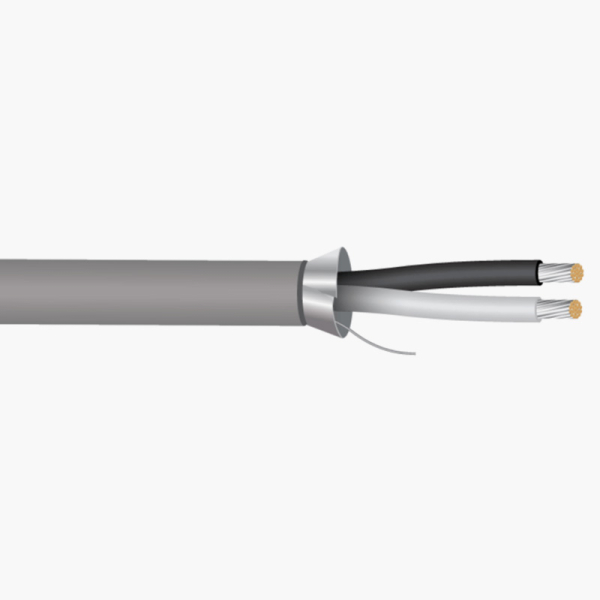

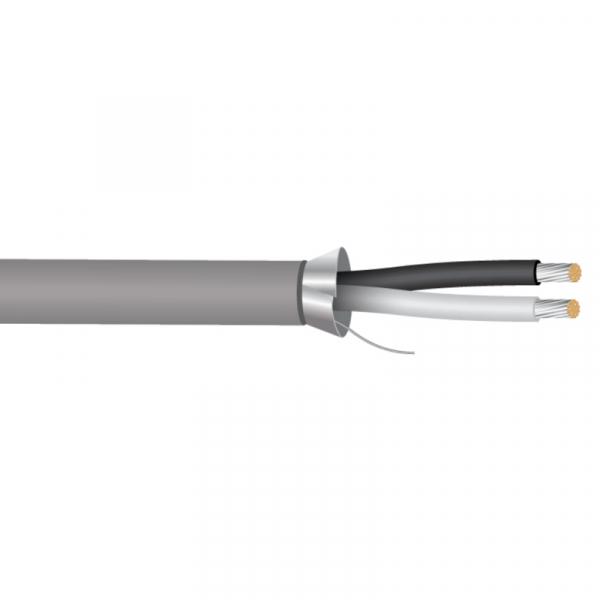

Paige 458761NH, 2 Core 22 AWG Stranded Tinned Copper, Overall Shielded, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .017”
 2.3 Color code:
               1-Black
               2-White

 3. Assembly

 3.1 Lay Length: 2.00” LHL (6.00 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 22 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: Low Smoke Zero Halogen
       Polyolefin
 6.2 Wall Thickness: .025”
 6.3 OD: .177” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #458761NH 22 AWG 2 SHIELDED LSZH 300V 75’C ROHS
       COMPLIANT MADE IN USA (Ascending/Descending footage markers)

 7. Electricals

 7.1 Capacitance: 18.83 pF/ft.
 7.2 Impedance: 81.6 ohms +/- 10%
 7.3 DC Resistance: 15.8 ohms/M ft.@ 20oC
 7.4 Voltage: 300 Volt max.

 Scope

 This cable consists of 2 conductors 22 AWG stranded tinned copper; Polyethylene insulation; overall
 aluminum Mylar shield with drain wire; overall Low Smoke Zero Halogen
 Polyolefin.

 Application

 Communication Cable
