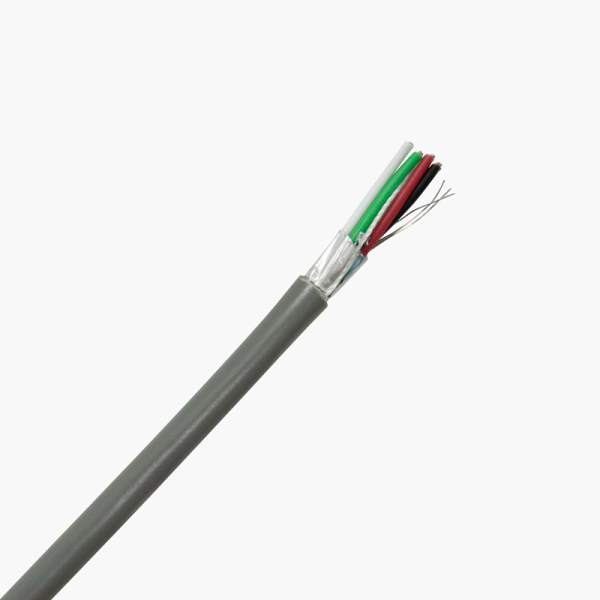

Paige 458723 22AWG-2 Pair Stranded, Individually Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .009”
 2.3 Color code:
                Pair 1:
               1-Red
               2-Black
               Pair 2:
               1-Green
               2-White

 3. Cabling Overall Lay

 3.1 2” left hand lay

 4. Shield

 4.1 Material: Foil Free Edge Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .020”
 6.3 OD: .160” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #458723 22 AWG 2PR INDV SHIELDED (UL) TYPE CM OR c(UL)
       CM E191596 ROHS MADE IN USA Ascending / Descending footage markings

 7. Electrical Properties

 7.1 Capacitance: CDR-CDR 33 pF/ft.
 7.2 DC Resistance: 16.37 Ohms/M ft.
 7.3 Voltage: 300 Volt

 SCOPE:
 This cable consists of 2 pair 22 AWG stranded tinned copper; color-coded Polypropylene insulation;
 each pair with aluminum mylar shield; common drain wire; overall PVC jacket.
 RoHS Compliant
