Paige 458719, 2 Core 16 AWG Stranded Tinned Copper, Overall Shielded, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 16 AWG
 1.3 Stranding: 19 Strand

 2. Insulation

 2.1 Material: Low Density Polyethylene
 2.2 Wall Thickness: .032”
 2.3 Color code:
             1-Black
             2-Clear

 3. Cabling Overall Lay

 3.1 2 1⁄2” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar Tape

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 18 AWG
 5.3 Stranding: 7 Strand

6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .032”
 6.3 OD: .310” nom.
 6.4 Color: Gray
 6.5 Rip Cord: Yes
 6.6 Markings: PAIGE #458719 16 AWG 1P SHIELDED (UL) TYPE CL2 OR c(UL)us TYPE
       CM E191597 AWM STYLE 20253 600V ROHS MADE IN USA
       (Ascending/Descending footage markings)

 7. Electricals

 7.1 Capacitance: 23 pF/ft. nom.
 7.2 Voltage: 600V
 7.3 DC Resistance: 4.5 ohms/M ft.

 Scope

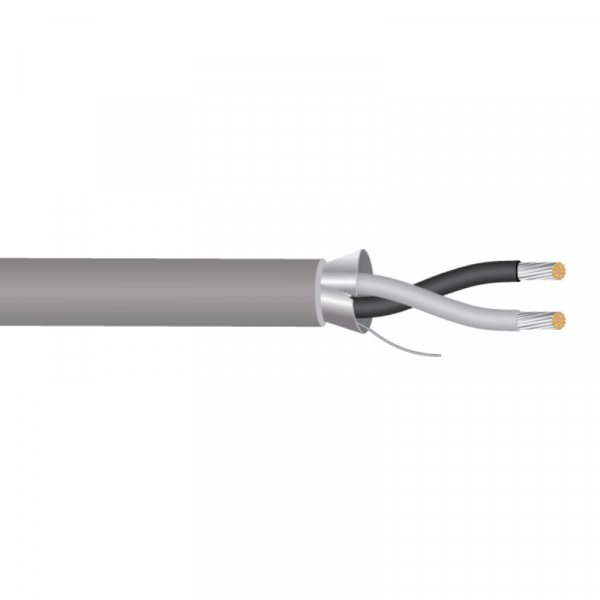

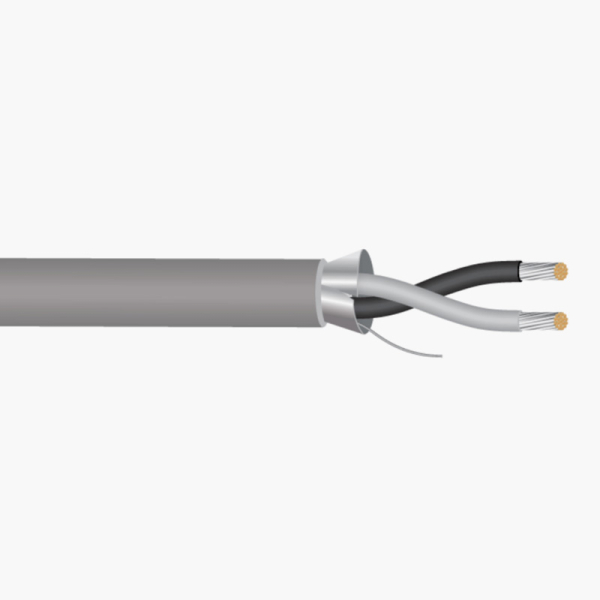

 This cable consists of 1 pair 16 AWG stranded tinned copper; color-coded low density Polyethylene insulation;

 overall aluminum mylar shield with drain wire; overall PVC jacket.

 RoHS Compliant

 Application

 Communication Cable
