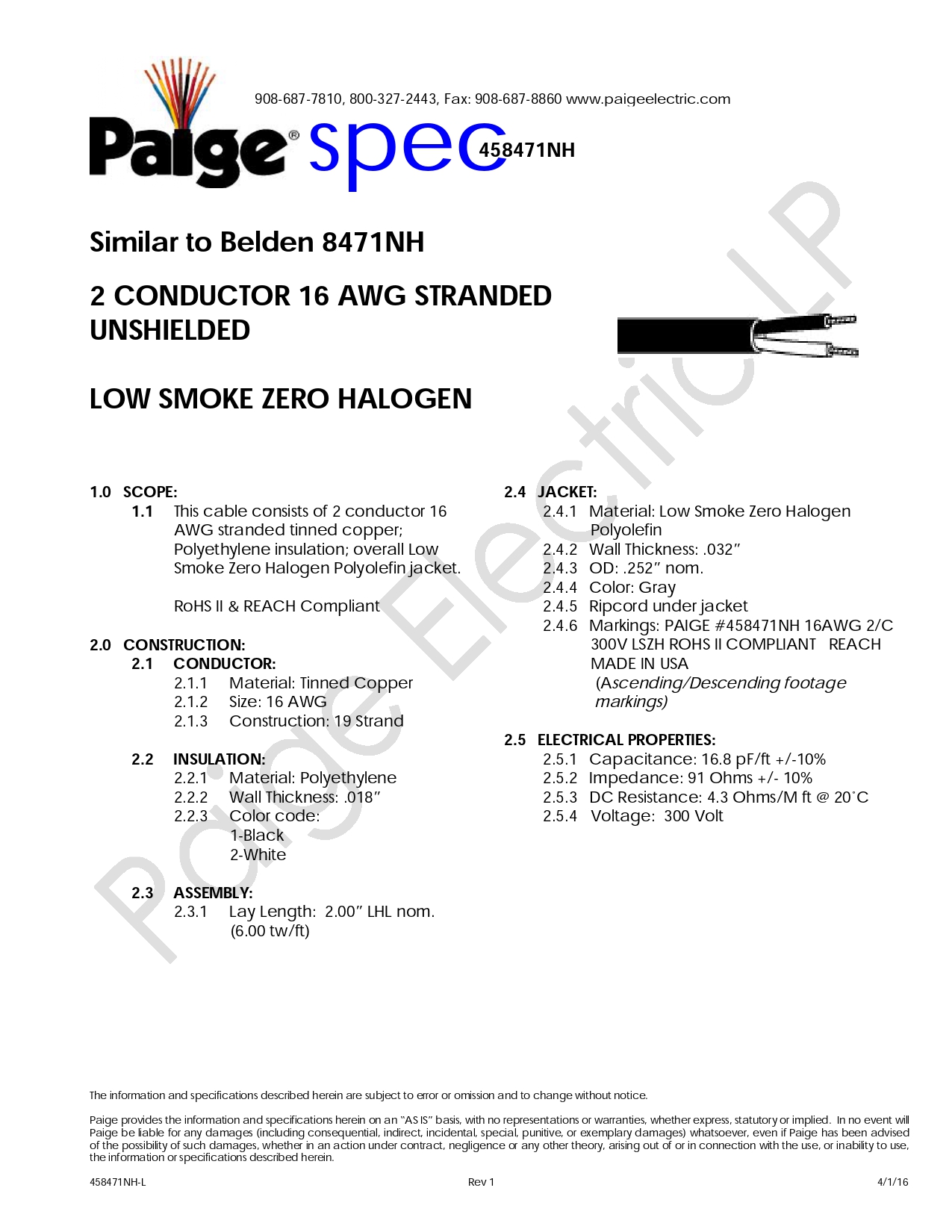

Paige 458471NH, 2 Core 16 AWG Stranded Tinned Copper, Unshielded, LSZH, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 16 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .018”
 2.3 Color code:
              1-Black
              2-White

 3. Assembly

 3.1 Lay Length: 2.00” LHL nom.
        (6.00 tw/ft)

 4. Jacket

 4.1 Material: Low Smoke Zero Halogen Polyolefin
 4.2 Wall Thickness: .032”
 4.3 OD: .252” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #458471NH 16AWG 2/C 300V LSZH ROHS II COMPLIANT REACH
       MADE IN USA (Ascending/Descending footage markings)

 5. Electrical Properties

 5.1 Capacitance: 16.8 pF/ft +/-10%
 5.2 Impedance: 91 Ohms +/- 10%
 5.3 DC Resistance: 4.3 Ohms/M ft @ 20 DegC
 5.4 Voltage: 300 Volt

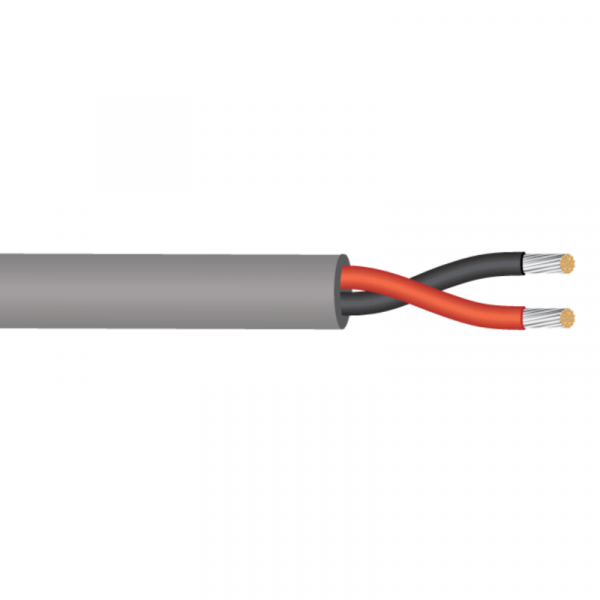

 Scope:

 This cable consists of 2 conductors 16 AWG stranded tinned copper; Polyethylene insulation;

 overall Low Smoke Zero Halogen Polyolefin jacket.

 RoHS II & REACH Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
