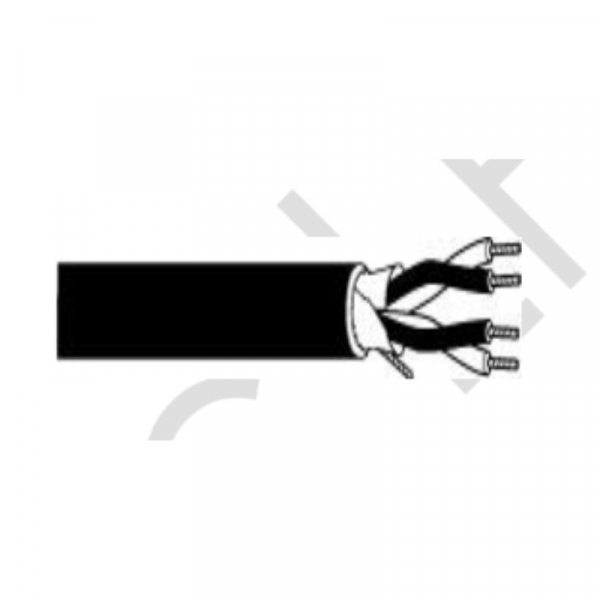

PAIGE 455541FE, 2 Core 22 AWG, Bare Copper Stranded, Overall Shielded, PVC Jacket, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strands

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
               1-Black x Red
               2-Black x White

 3. Cabling Overall Lay

 3.1 3” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain Wire

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .017”
 6.3 OD: .189” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #455541FE 22AWG 2PR SHIELDED (UL) TYPE CMR c(UL) TYPE CMG
        75C E191596 ROHS MADE IN USA (Ascending/Descending footage markings)

 7. Electricals

 7.1 Capacitance: CDR-CDR 24 pF/ft.
 7.2 DC Resistance: 16.3 ohms/M ft.
 7.3 Voltage: 300 Volts

 Scope

 This cable consists of 2 pairs 22 AWG stranded bare copper; color-coded Polypropylene insulation; overall
 aluminum mylar shield with drain wire; overall PVC jacket.
 RoHS Compliant
