CABLE CONSTRUCTION
1. Conductors
1.1 Material: Bare Copper
1.2 Size: 22 AWG
1.3 Construction: 7 Strand
2. Insulation
2.1 Material: Polypropylene
2.2 Wall Thickness: .007” nom.
2.3 Color code:
1-Black 5-Brown
2-Red 6-Blue
3-White 7-Orange
4-Green 8-yellow
3. Shield
3.1 Material: Aluminum Mylar
3.2 Coverage: 100%
4. Drain
4.1 Material: Tinned Copper
4.2 Size: 24 AWG
4.3 Construction: 7 Strand
5. Jacket
5.1 Material: PVC
5.2 Wall Thickness: .018” nom.
5.3 OD: .130” nom.
5.4 Color: Gray
5.5 Ripcord under jacket
5.6 Markings: PAIGE #455506FE E191596 22AWG 8C (UL) CL3R OR CMR C(UL)US
75’C SUN RES ROHS FT-4 (Ascending/Descending footage markings)
Scope

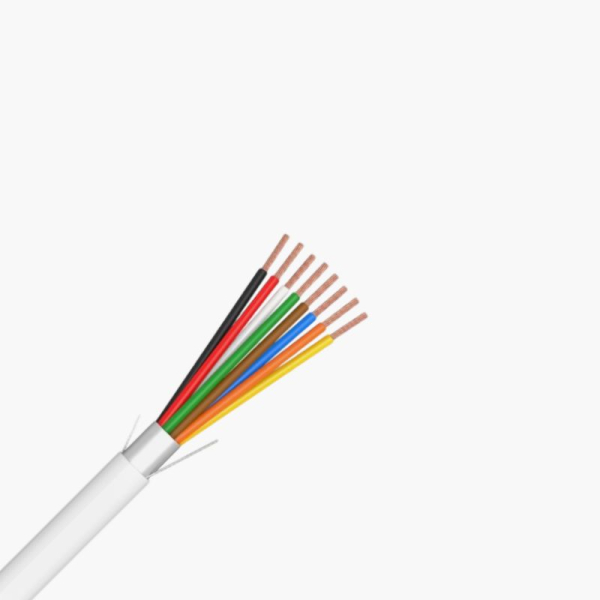

This cable consists of 8 conductors 22 AWG stranded bare copper; color-coded Polypropylene insulation;
overall aluminum Mylar shield with drain wire; overall PVC jacket. Type CL3R or CMR c(UL)us
RoHS Compliant
Weight :
Dimetion :
Cable in one drum:
Pallet weight :
Total net weight in cluding both :
