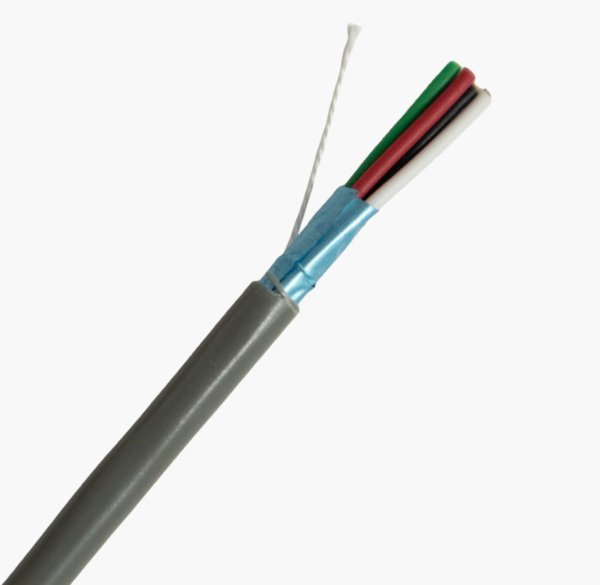

Paige 455502FE 22AWG-4C Stranded, Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
                1-Black
                2-Red
                3-White
                4-Green

 3. Cabling Overall Lay

 3.1 2 1⁄2” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar Tape

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .015”
 6.3 OD: .144” nom.
 6.4 Color: Gray
 6.5 Rip Cord: Yes
 6.6 Markings: PAIGE #455502FE 22AWG 4C SHIELDED (UL) TYPE CMR c(UL) TYPE CMG
        E191596 ROHS MADE IN USA (Ascending/Descending footage markings)

 7. Electricals

 7.1 Capacitance: CDR-CDR 22.5 pF/ft.
 7.2 Voltage: 300 Volts
 7.3 DC Resistance: 16.4 Ohms/M ft.

 Scope

 This cable consists of 4 conductors 22 AWG stranded bare copper; color-coded Polypropylene insulation;

 overall aluminum mylar tape shield with drain wire; overall PVC jacket. Type CMR / CMG

 RoHS Compliant
