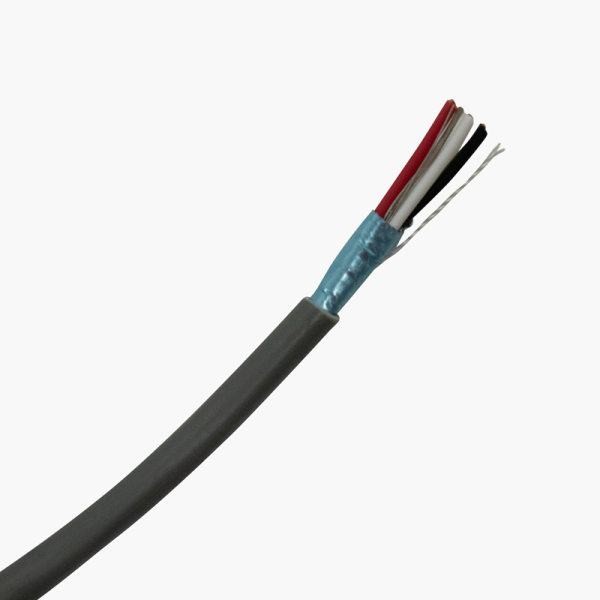

PAIGE 455501FE, 3 CORE 22 AWG Stranded Bare Copper, Overall Shielded, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .007” nom.
 2.3 Color code:
                1-Black
                2-Red
                3-White

 3. Shield

 3.1 Material: Aluminum Mylar
 3.2 Coverage: 100%

 4. Drain

 4.1 Material: Tinned Copper
 4.2 Size: 24 AWG
 4.3 Construction: 7 Strand

 5. Jacket

 5.1 Material: PVC
 5.2 Wall Thickness: .018” nom.
 5.3 OD: .130” nom.
 5.4 Color: Gray
 5.5 Ripcord under jacket
 5.6 Markings: PAIGE #455501FE E191596 22AWG 3C (UL) CL3R OR CMR C(UL)US
        75’C SUN RES ROHS FT-4 (Ascending/Descending footage markings)

 Scope

 This cable consists of 3 conductors 22 AWG stranded bare copper; color-coded Polypropylene insulation;
 overall aluminum Mylar shield with drain wire; overall PVC jacket. Type CL3R or CMR c(UL)us


 RoHS Compliant
