Paige 455500UNH 22AWG-2C Stranded, Unshielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand.

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .008”
 2.3 Color code: Black, Red

 3. ASSEMBLY

 3.1 Lay Length: 1.50” LHL
        (8.0 tw/ft)

 4. JACKET

 4.1 Material: Low Smoke Zero Halogen
       Polyolefin
 4.2 Wall Thickness: .016”
 4.3 OD: .121” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #455500UNH LSZH 22 AWG 2C 75’C 300V ROHS II COMPLIANT
       MADE IN USA (Ascending/Descending footage markings)

 SCOPE:

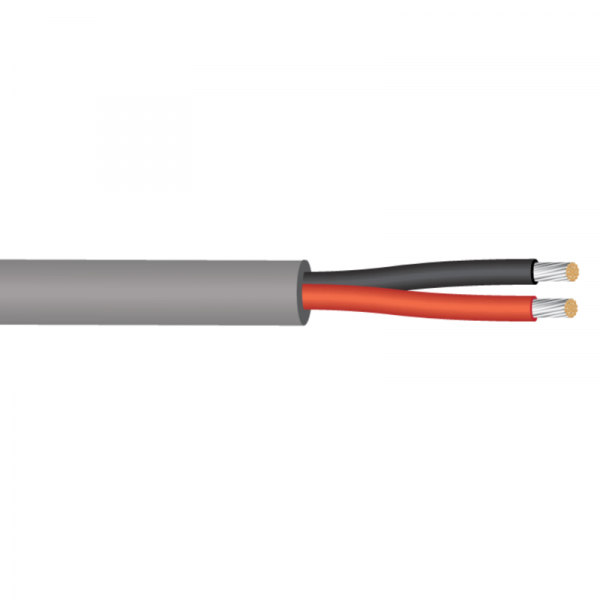

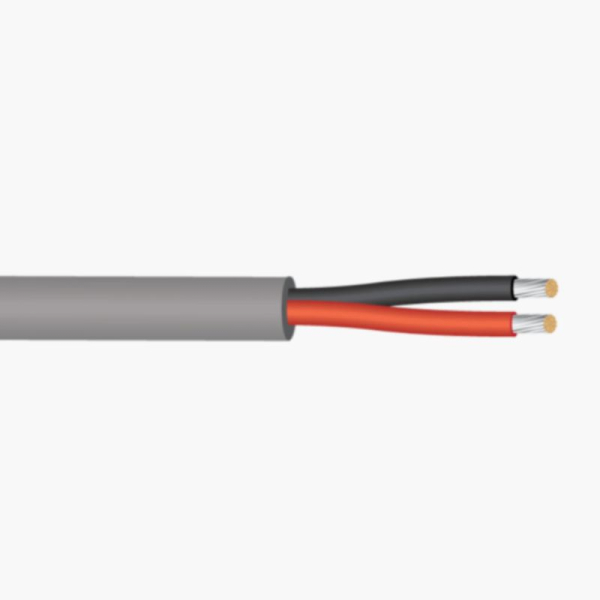

 This cable consists of 2 conductors 22 AWG stranded bare copper; color-coded Polyethylene insulation; overall

 low smoke zero halogen Polyolefin jacket.

 RoHS II & REACH Compliant
