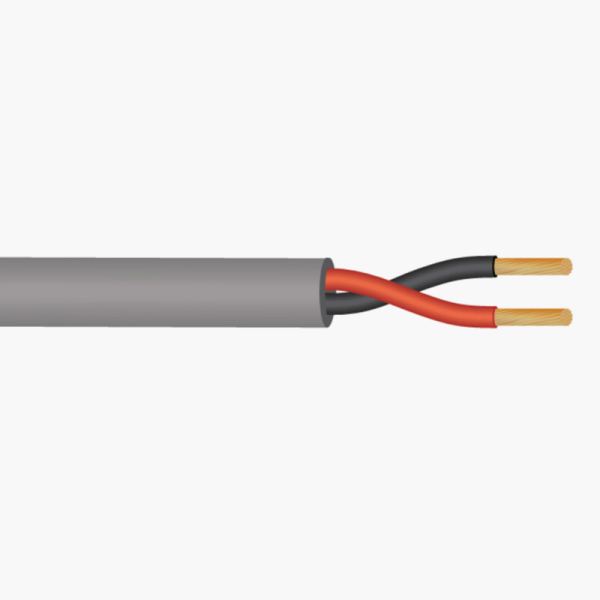

Paige 455500UE, 2 Core 22 AWG Stranded Bare Copper, Unshielded, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
               1-Black
               2-Red

 3. Cabling Overall Lay

 3.1 2 1⁄2” left hand lay

 4. Jacket

 4.1 Material: PVC
 4.2 Wall Thickness: .015”
 4.3 OD: .120” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #455500UE E191596 22 AWG 2C UL TYPE CMR c(UL) TYPE CMG
       (Ascending/Descending sequential footage markers)

 5. Electrical Properties

 5.1 DC Resistance: 16.4 ohms/M ft.
 5.2 Voltage: 300 Volts
 5.3 Capacitance CDR: 17 pF/ft.

 SCOPE:

 This cable consists of 2 conductors 22 AWG stranded bare copper; color-
 coded Polypropylene insulation; overall PVC Jacket.
 RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
