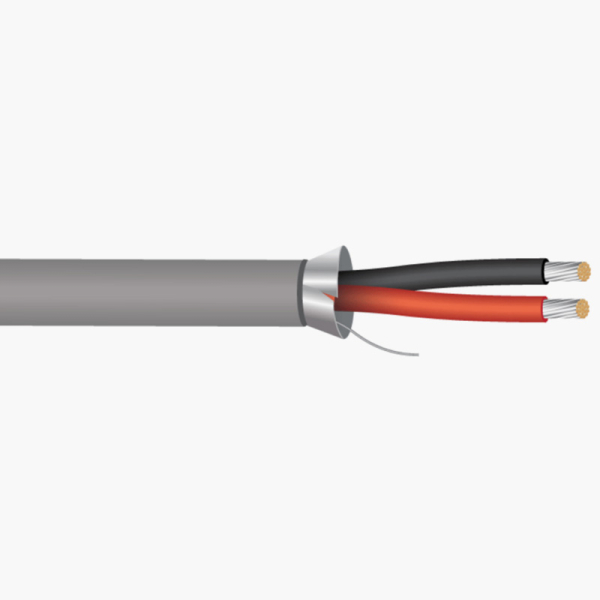

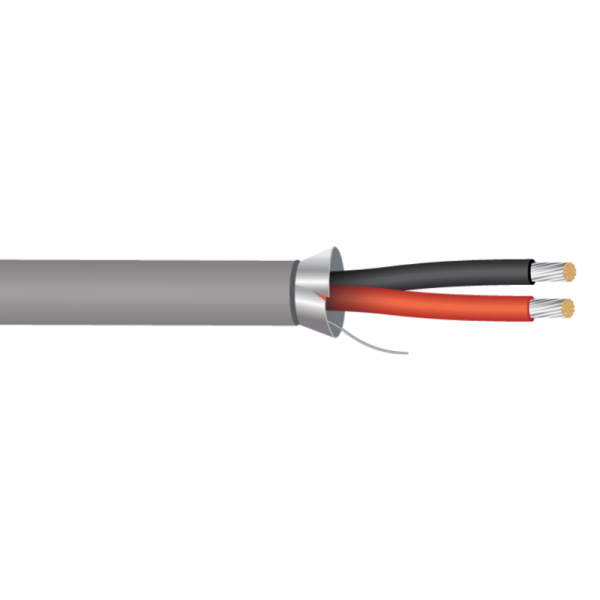

Paige 455500FE, 2 Core 22 AWG Stranded Bare Copper, Overall Shielded, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
               1-Black
               2-Red

 3. Shield

 3.1 Material: Aluminum Mylar Foil

 4. Drain

 4.1 Material: Tinned Copper
 4.2 Size: 24 AWG
 4.3 Construction: 7 Strand

 5. Jacket

 5.1 Material: PVC
 5.2 Wall: .015”
 5.3 OD: .124” nom.
 5.4 Color: Gray
 5.5 Ripcord under jacket
 5.6 Markings: PAIGE #455500FE 22 AWG 2C SHIELDED (UL) TYPE CMR c(UL)
       TYPE CMG E191596 (Ascending/Descending Sequential Footage Markers)

 6 Electrical Properties

 6.1 DC Resistance: 16.4 ohms/M ft.
 6.2 Voltage: 300 Volts
 6.3 Capacitance: (CDR-CDR) 34.5 pF/ft.

 Scope

 This cable consists of 2 conductors 22 AWG stranded bare copper; color- coded Polypropylene insulation;

 overall aluminum Mylar shield with drain wire; overall PVC jacket. RoHS Compliant

 Application

 Communication Cable
