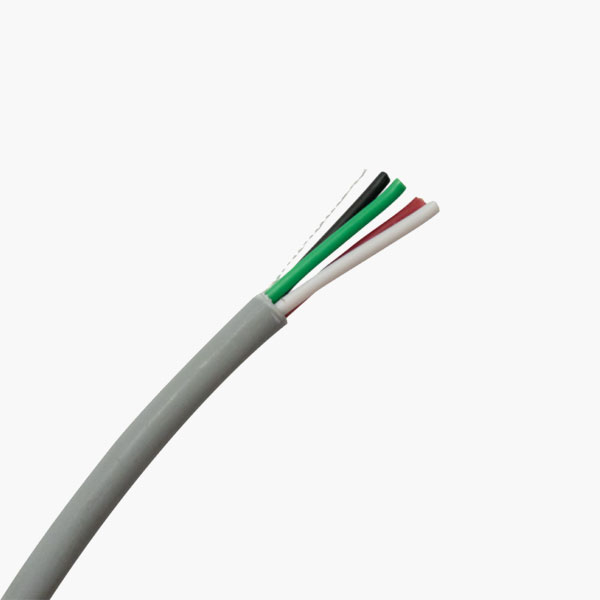

Paige 455302UE 18AWG-4C Stranded, Unshielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
        1-Black
        2-Red
        3-White
        4-Green

 3. Cabling Overall Lay

 3.1 3 1⁄2” left hand lay

 4. JACKET

 4.1 Material: PVC
 4.2 Wall Thickness: .017”
 4.3 OD: .183” nom.
 4.4 Color: Gray
 4.5 Ripcord Under Jacket
 4.6 Markings: PAIGE #455302UE 18AWG 4C (UL) TYPE CMR c(UL) TYPE CMG 75C
       E191596 ROHS COMPLIANT MADE IN USA (Ascending/Descending footage markings)

 Scope:

 This cable consists of 4 conductors 18 AWG stranded bare copper; color-coded Polypropylene insulation;

 overall PVC jacket.

 RoHS Compliant
