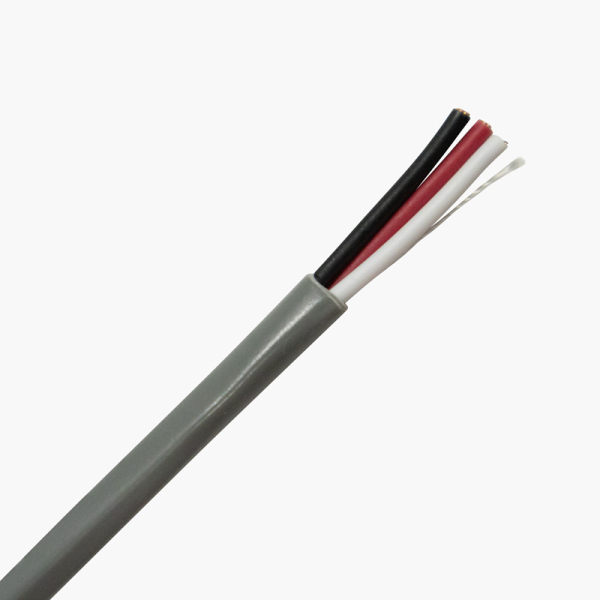

Paige 455301UE 18AWG-3C Stranded, Unshielded, PVC Grey Jacket Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
              1-Black
              2-Red
              3-White

 3. Cabling Overall Lay

 3.1 3” left hand lay

 4. Jacket

 4.1 Material: PVC
 4.2 Wall Thickness: .017”
 4.3 OD: .169” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #455301UE 18 AWG 3C (UL) TYPE CMR c(UL) TYPE CMG E191596
       ROHS MADE IN USA (Ascending/Descending footage markings)

 5. Electrical Properties

 5.1 Capacitance: 21.5 pF/ft.
 5.2 DC Resistance: 6.5 ohms/M ft.
 5.3 Voltage: 300 Volts

 SCOPE:
 This cable consists of 3 conductors 18 AWG stranded bare copper; color-coded
 Polypropylene insulation overall PVC Jacket.
 RoHS Compliant
