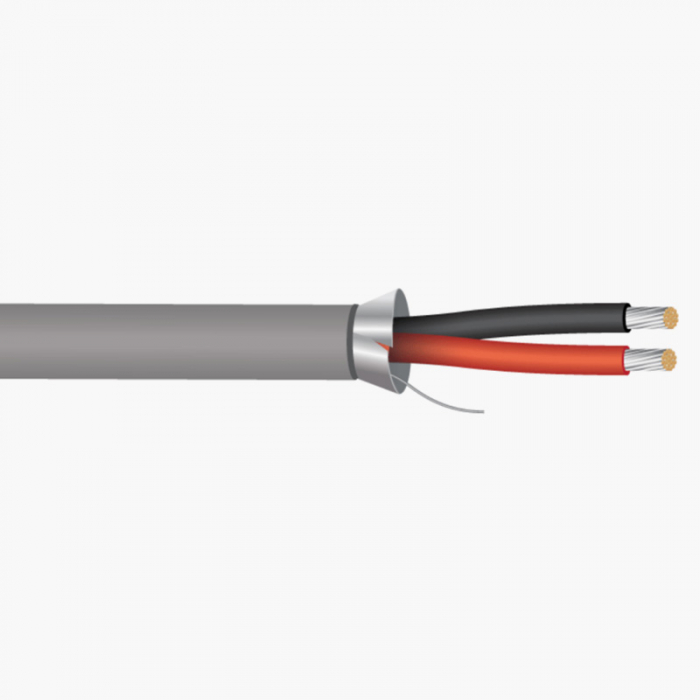

CABLE CONSTRUCTION
1. Conductors
1.1 Material: Bare Copper
1.2 Size: 18 AWG
1.3 Construction: 7 Strand
2. Insulation
2.1 Material: Polypropylene
2.2 Wall Thickness: .008”
2.3 Color code:
1-Black
2-Red
3-White
3. Cabling Overall Lay
3.1 3” left hand lay
4. Shield
4.1 Material: Aluminum Mylar
5. Drain
5.1 Material: Tinned Copper
5.2 Size: 24 AWG
5.3 Construction: 7 Strand
6. Jacket
6.1 Material: PVC
6.2 Wall: .015” nom.
6.3 OD: .168” nom.
6.4 Color: Gray
6.5 Ripcord under jacket
6.6 Markings: PAIGE #455301FE 18 AWG 3C SHIELDED (UL) TYPE CMR c(UL) TYPE CMG
E191596 ROHS MADE IN USA (Ascending/Descending Sequential Markers)
7. Electrical Properties
7.1 Capacitance: (CDR-CDR) 36 pF/ft.
7.2 DC Resistance: 6.5 ohms/M ft.
7.3 Voltage: 300 Volts

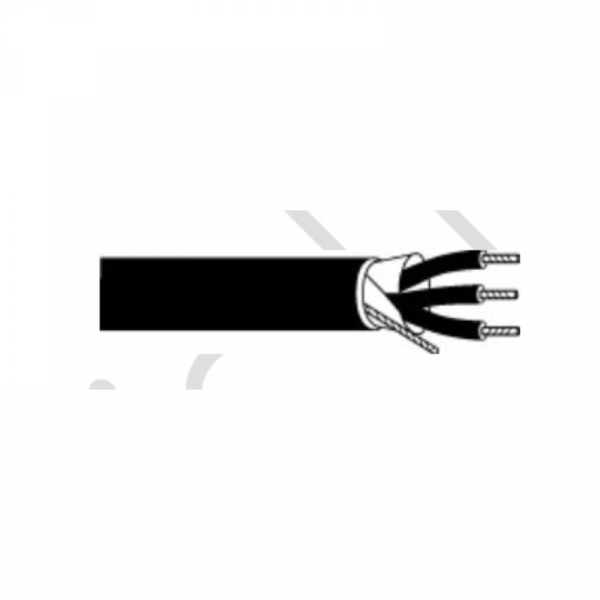

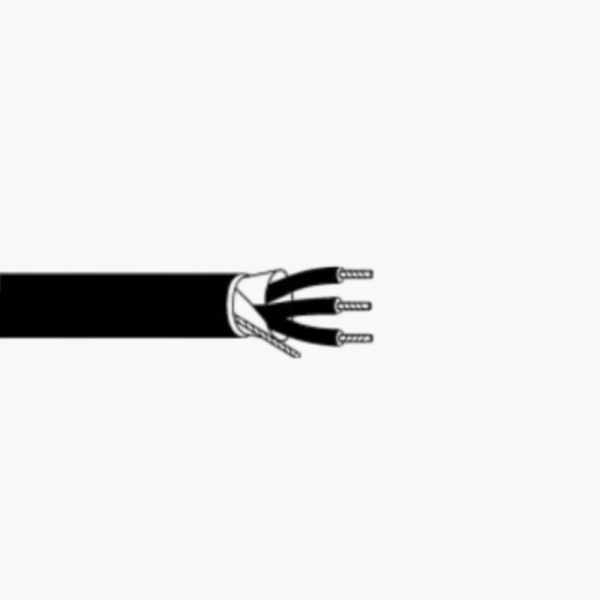

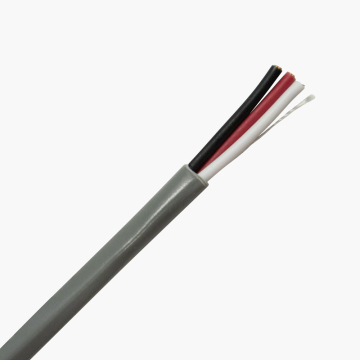

Scope
This cable consists of 3 conductors 18 AWG stranded bare copper; color- coded Polypropylene insulation;
overall aluminum Mylar shield with drain wire; overall PVC jacket. RoHS Compliant
Weight :
Dimetion :
Cable in one drum:
Pallet weight :
Total net weight in cluding both :
product brand | PAIGE |
---|
