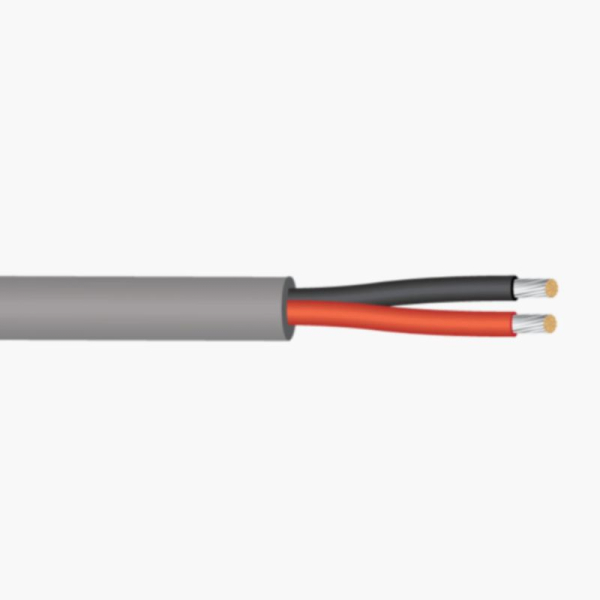

Paige 455300UE, 2 Core 18 AWG Stranded Bare Copper, Unshielded, Roll of 305 MTR

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
              1-Black
              2-Red

 3. Cabling Overall Lay

 3.1 2 1⁄2” left hand lay

 4. Jacket

 4.1 Material: PVC
 4.2 Wall Thickness: .017”
 4.3 OD: .158” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #455300UE 18 AWG 2C c(UL)us
       TYPE CMR 75C E191596 MADE IN  USA
       ROHS COMPLIANT
       (Ascending/Descending footage markers)

 5. Electrical Properties

 5.1 Capacitance: 21.5 pF/ft.
 5.2 DC Resistance: 6.5 ohms/M ft.
 5.3 Voltage: 300 Volts

 SCOPE:

 This cable consists of 2 conductors 18 AWG stranded bare copper; color- coded Polypropylene insulation;overall PVC Jacket.

 RoHS Compliant
