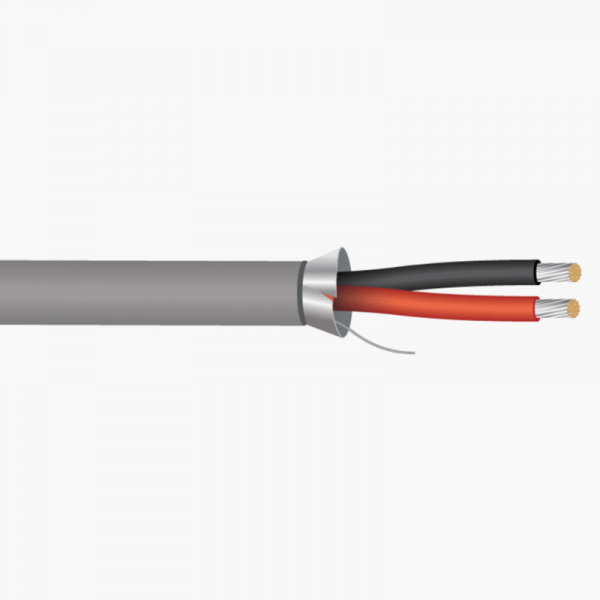

Paige 455300FE, 2 Core 18 AWG Stranded Bare Copper, Overall Shielded, Roll of 305 MTR

0 Review
AED  493.50 AED  509.25
-3%
-3%

Price inclusive of all taxes

Availability: In stock
Only %1 left
SKU:
Paige455300FEConfig

UOM : Roll
Brand : Paige

For Bulk Orders Just ping us on Whatsapp. + 971 50 7749157



 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
              1-Black
              2-Red

 3. Cabling Overall Lay

 3.1 2 1⁄2” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall: .015”
 6.3 OD: .163” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: “PAIGE #455300FE 18 AWG 2C SHIELDED c(UL)us TYPE CMR 300V 75C
                           E191596 ROHS MADE IN USA” (Ascending/Descending Footage Markers)

 7. Electrical Properties

 7.1 DC Resistance: 6.5 ohms/M ft.
 7.2 Capacitance CDR : 53.0 pF/ft
 7.3 Voltage: 300 Volts





 Scope

 This cable consists of 2 conductors 18 AWG stranded bare copper; color-coded Polypropylene insulation;

 overall aluminum mylar shield with drain wire; overall PVC jacket.

 RoHS Compliant



 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
