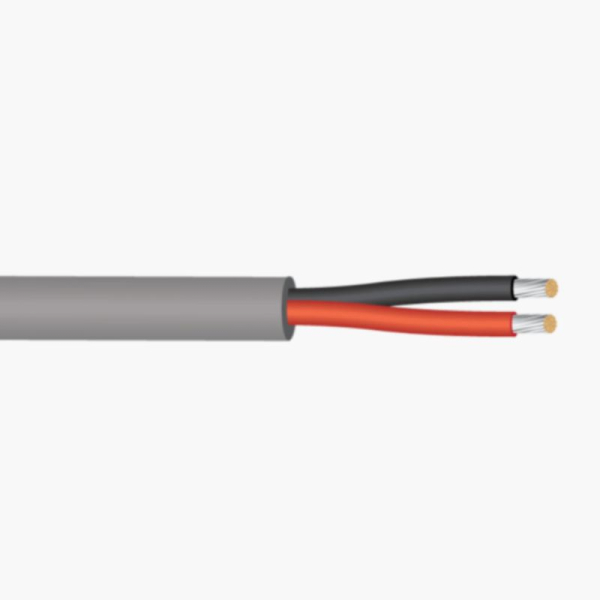

Paige 455200UE 16AWG-2C Stranded, Unshielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 16 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
              1-Black
              2-Red

 3. Cabling Overall Lay

 3.1 3” left hand lay

 4. Jacket

 4.1 Material: PVC
 4.2 Wall Thickness: .015”
 4.3 OD: .174” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #455200UE 16 AWG 2C (UL) TYPE CMR c(UL) TYPE CMG E191596
       ROHS MADE IN USA (Ascending/Descending footage markers)

 5. Electrical Properties

 5.1 DC Resistance: 4.2 ohms/M ft.
 5.2 Voltage: 300 Volts
 5.3 Capacitance: (CDR-CDR) 23 pF/ft

 SCOPE:

 This cable consists of 2 conductors 16 AWG stranded bare copper; color- coded Polypropylene insulation; overall PVC jacket.
 RoHS Complian
