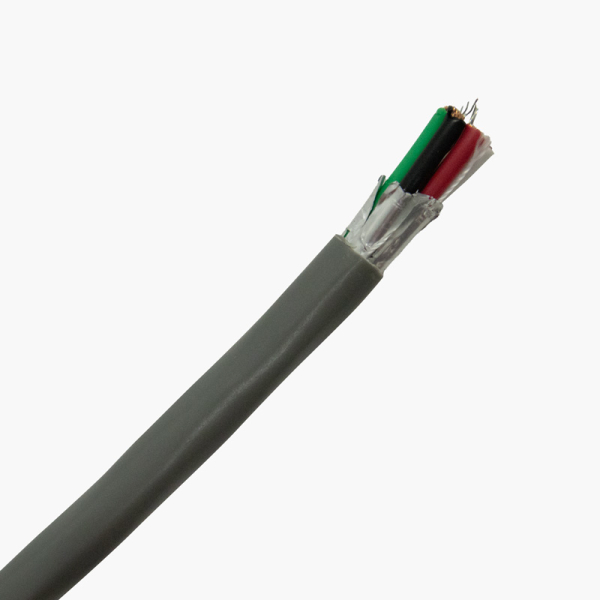

Paige 455102FE 14AWG-4C Stranded, Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 14 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .011”
 2.3 Color code:
                1-Black
                2-White
                3-Red
                4-Green

 3. Cabling Overall Lay

 3.1 4 1⁄2” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .017”
 6.3 OD: .265” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE 455102FE E191597 1AWG 4C SHIELDED (UL) TYPE CL3R/FPLR
       ROHS MADE IN USA (Ascending/Descending footage markings)

 7. Electrical Properties

 7.1 Capacitance: 54 pF/ft.
 7.2 DC Resistance: 2.54 ohms/M ft.
 7.3 Voltage: 300 Volts

 Scope

 This cable consists of 4 conductors 14 AWG stranded bare copper; color-
 coded Polypropylene insulation; overall aluminum Mylar shield with drain wire; overall
