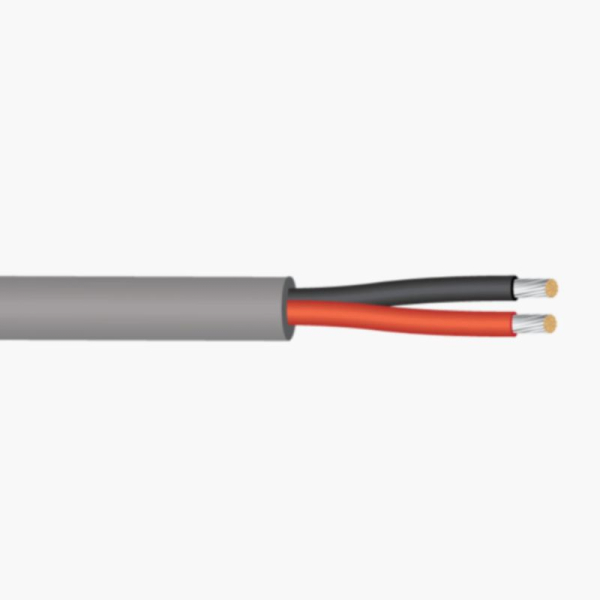

Paige 455100UE 14AWG-2C Stranded, Unshielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 14 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .011”
 2.3 Color code:
              1-Black
              2-White

 3. Cabling Overall Lay

 3.1 4” left hand lay

 4. Jacket

 4.1 Material: PVC
 4.2 Wall Thickness: .017”
 4.3 OD: .218” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #455100UE 14 AWG 2C (UL) TYPE CL3R/FPLR E191597 ROHS MADE IN USA
        (Ascending/Descending footage markers)

 5. Electrical Properties

 5.1 Capacitance CDR: 22.0 pF/ft.
 5.2 DC Resistance: 2.54 ohms/M ft.
 5.3 Voltage: 300 Volts

 Scope

 This cable consists of 2 conductors 14 AWG stranded bare copper; color-coded Polypropylene insulation; overall PVC Jacket.
 RoHS Compliant
