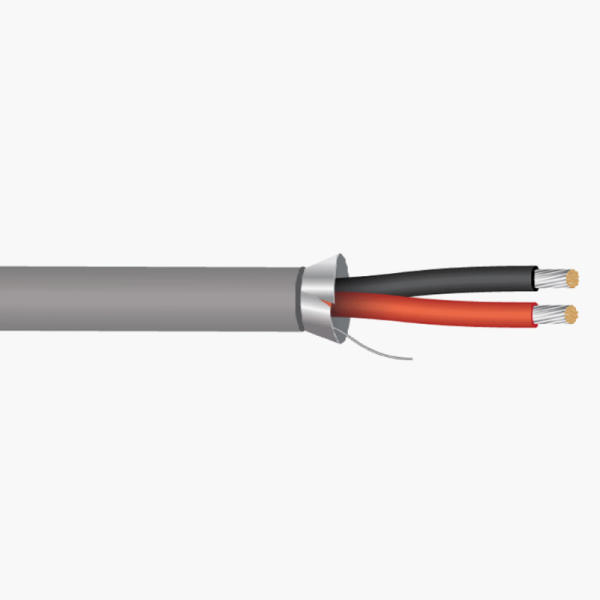

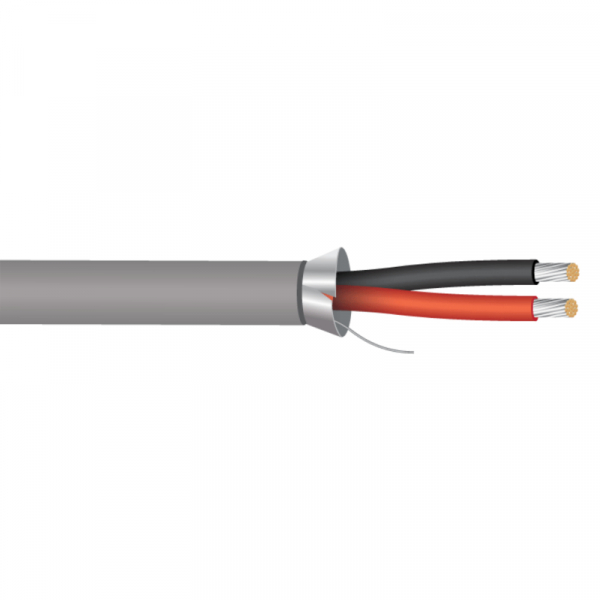

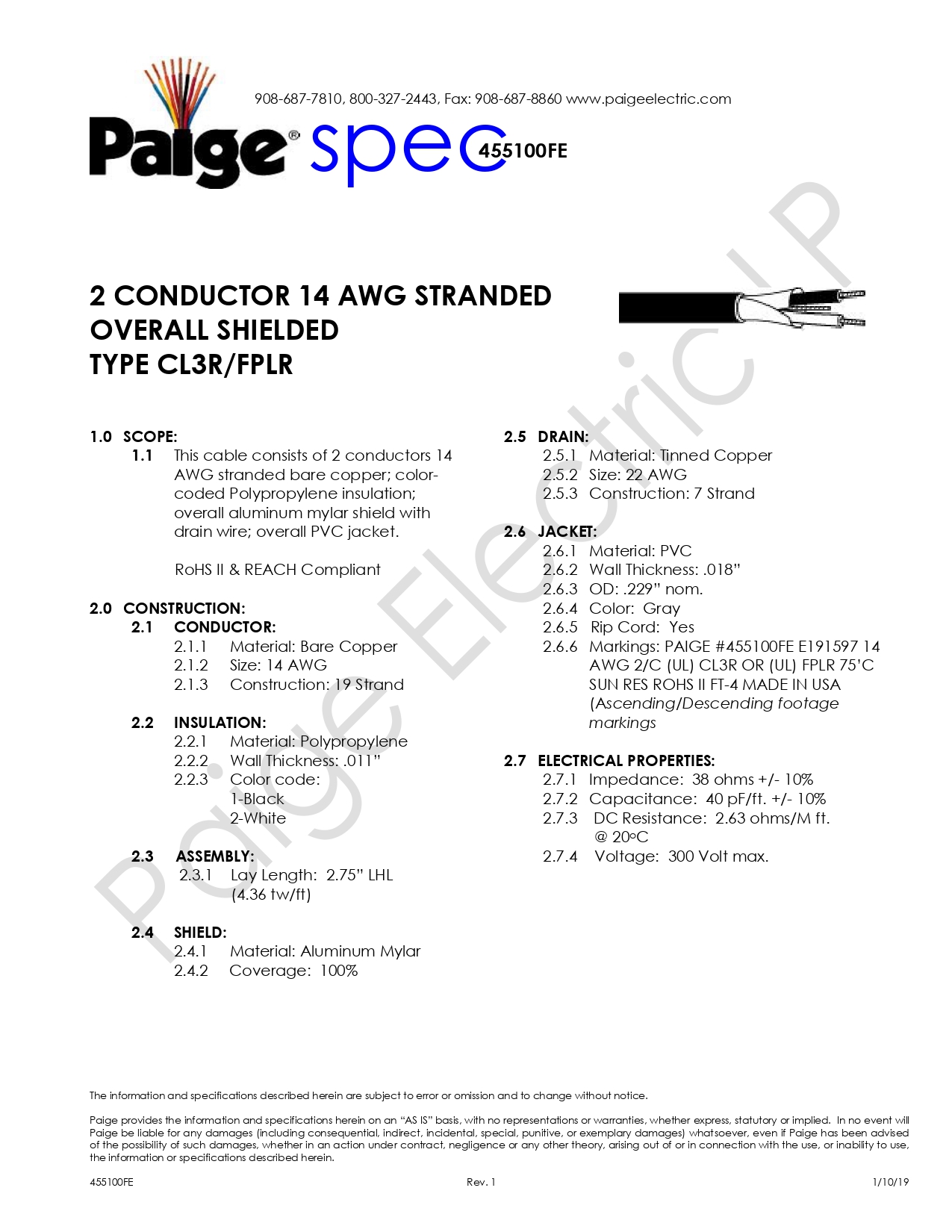

Paige 455100FE 14AWG-2C Stranded, Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 14 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .011”
 2.3 Color code:
                     1-Black
                     2-White

 3. Assembly

 3.1 Lay Length: 2.75” LHL (4.36 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 22 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .018”
 6.3 OD: .229” nom.
 6.4 Color: Gray
 6.5 Rip Cord: Yes
 6.6 Markings: PAIGE #455100FE E191597 14 AWG 2/C (UL) CL3R OR (UL) FPLR 75’C
       SUN RES ROHS II FT-4 MADE IN USA (Ascending/Descending footage markings

 7. Electrical Properties

 7.1 Impedance: 38 ohms +/- 10%
 7.2 Capacitance: 40 pF/ft. +/- 10%
 7.3 DC Resistance: 2.63 ohms/M ft.@ 20degC
 7.4 Voltage: 300 Volt max.

 Scope

 This cable consists of 2 conductors 14 AWG stranded bare copper; color-coded Polypropylene insulation;

 overall aluminum mylar shield with drain wire; overall PVC jacket. RoHS II & REACH Compliant
