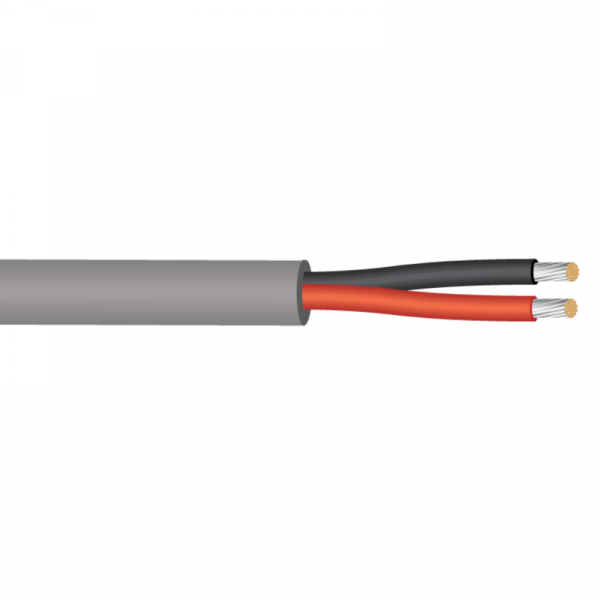

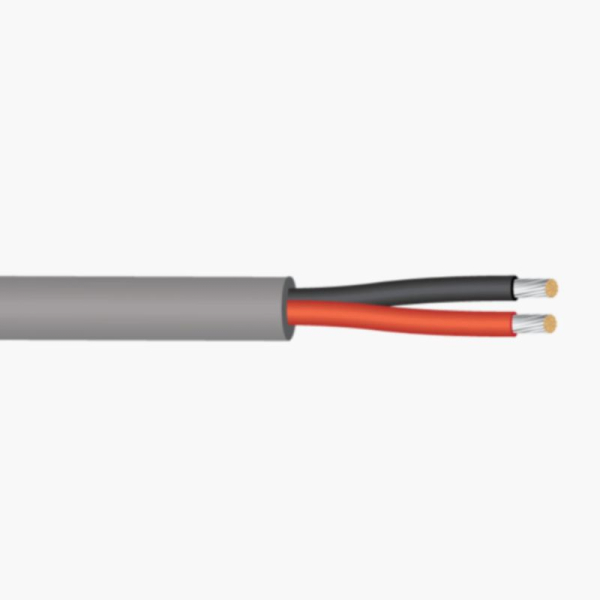

Paige 455000UE 12AWG-2C Stranded, Unshielded, PVC Speaker Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 12 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Polypropylene
 2.2 Wall Thickness: .011”
 2.3 Color code:
              1-Black
              2-White

 3. Cabling Overall Lay

 3.1 4 1⁄2” left hand lay

 4. Jacket

 4.1 Material: PVC
 4.2 Wall Thickness: .017”
 4.3 OD: .261” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #455000UE 12 AWG 2C (UL) TYPE CL3R/FPLR E191597 ROHS MADE IN USA
       (Ascending/Descending footage markers)

 5. Electrical Properties

 5.1 DC Resistance: 1.60 ohms/M ft.
 5.2 Voltage: 300 Volts
 5.3 Capacitance CDR: 24.0 pF/ft.

 SCOPE:

 This cable consists of 2 conductors 12 AWG stranded bare copper; color-coded

 Polypropylene insulation; overall PVC Jacket.

 RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
