Paige 454680AGR 20AWG-2C Stranded, Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 20 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .007”
 2.3 Color code:
                  1-Black
                  2-Red

 3. Assembly

 3.1 Lay Length: 2.00” LHL(6.00 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .015”
 6.3 OD: .134” nom.
 6.4 Color: Gray
 6.5 Ripcord: Yes
 6.6 Markings: PAIGE #454680AGR E191597 20AWG 2C SHIELDED 75’C (UL) CL3R SUN
       RES OR FPLR OR C(UL)US CMR FT4 ROHS COMPLIANT MADE IN USA
       (Ascending/Descending footage markings)

 7. Electricals

 7.1 Capacitance: 47 pF/ft. +/- 10%
 7.2 Impedance: 38 ohms +/- 10%
 7.3 DC Resistance: 10.4 ohms/M ft. @ 20oC
 7.4 Voltage: 300 Volts max.

 Scope

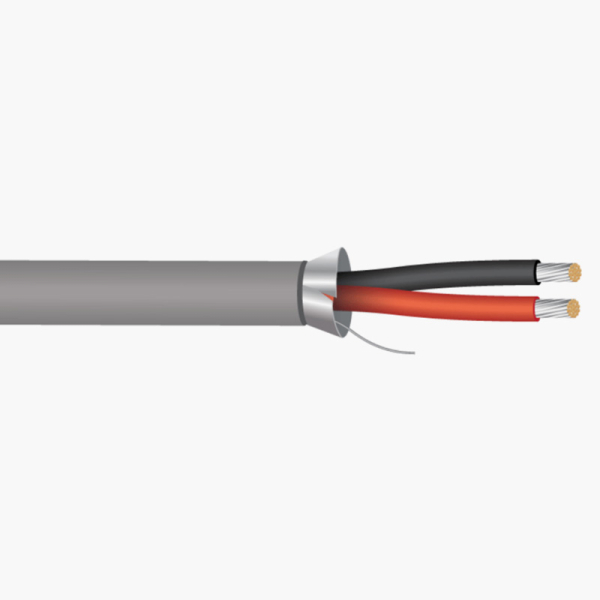

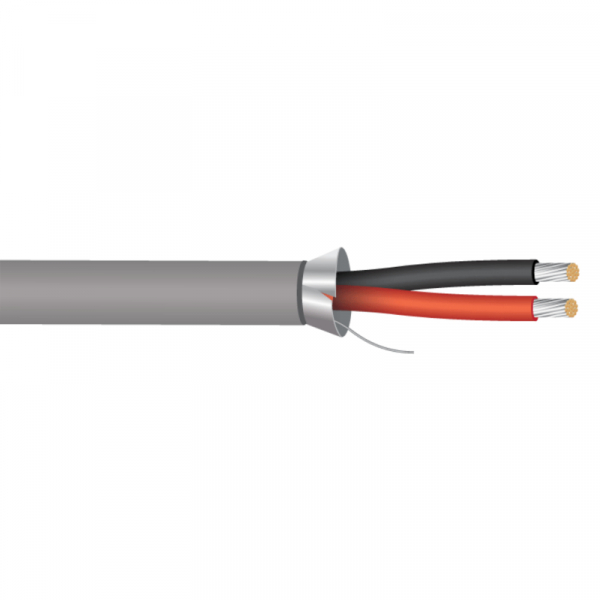

 This cable consists of 2 conductors 20 AWG stranded bare copper; color- coded PVC insulation; overall

 aluminum mylar shield with drain wire; overall PVC jacket.

 RoHS II & REACH Compliant
