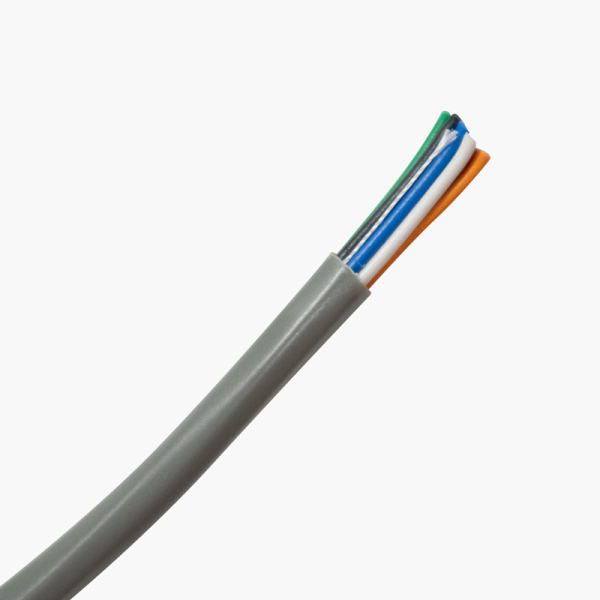

Paige 454670AGR 18AWG-8C Stranded, Unshielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .007”
 2.3 Color code: 1-Black, 2-Red,
                             3-White, 4-Green,
                             5-Brown, 6-Blue,
                             7-Orange, 8-Yellow

 3. Jacket

 3.1 Material: PVC
 3.2 Wall Thickness: .014”
 3.3 OD: .224” nom.
 3.4 Color: Gray
 3.5 Ripcord under jacket
 3.6 Markings: PAIGE 454670AGR E191596 18AWG 8C (UL) TYPE CMR C(UL)US OR
       (UL) FPLR 75’C SUN RES FT-4 ROHS II COMPLIANT REACH MADE IN USA
       (Ascending/Descending Sequential Footage Markers)

 4. Electrical Properties

 4.1 Voltage: 300 Volt
 4.2 Capacitance: 28.3 pF/ft +/- 10%
 4.3 Impedance: 63 ohms/M ft. +/- 10%
 4.4 DC Resistance: 5.86 Ohms/M ft. @ 20 DegC

 Scope

 This cable consists of 8 conductors 18 AWG stranded bare copper; color-coded

 PVC insulation; overall PVC Jacket. Type CMR C(UL)US FPLR

 RoHS II Compliant / REACH

 Application

 Communication Cable
