CABLE CONSTRUCTION
1. Conductors
1.1 Material: Bare Copper
1.2 Size: 20 AWG
1.3 Construction: 7 Strand
2. Insulation
2.1 Material: PVC
2.2 Wall Thickness: .007”
2.3 Color code: 1-Black, 2-Red,
3-White, 4-Green
3. Assembly
3.1 Lay Length: 2.00” LHL
(6.00 tw/ft)
4. Jacket
4.1 Material: PVC
4.2 Wall Thickness: .015”
4.3 OD: .153” nom.
4.4 Color: Gray
4.5 Ripcord under jacket
4.6 Markings: PAIGE #454667AGR E191597 20AWG 4C (UL) CL3R SUN RES OR FPLR
OR C(UL)US CMR FT-4 ROHS II COMPLIANT MADE IN USA
(Ascending/Descending footage Markers)
5. Electrical Properties
5.1 Impedance: 67 ohms +/- 10%
5.2 Capacitance: 27 pF/ft. +/- 10%
5.3 DC Resistance: 10.42 Ohms/M ft.
@ 20DegC
5.4 Voltage: 300 Volt max.

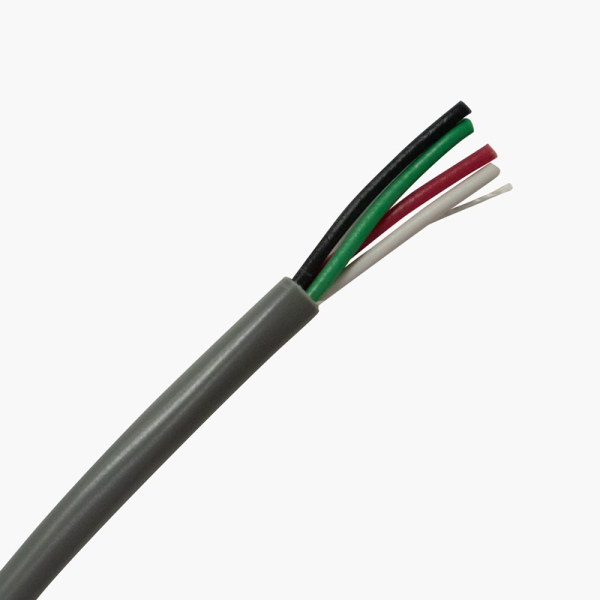

Scope
This cable consists of 4 conductors 20 AWG stranded bare copper; color-
coded PVC insulation; overall PVC jacket.
RoHS II & REACH Compliant
Application
Communication Cable
Weight :
Dimetion :
Cable in one drum:
Pallet weight :
Total net weight in cluding both :
product brand | PAIGE |
---|
