Paige 454666AGR 20AWG-2C Stranded, Unshielded, Control Cable

 CONSTRUCTION

 CONDUCTOR

 1.1 Material: Bare Copper
 1.2 Size: 20 AWG
 1.3 Construction: 7 x 28

 INSULATION

 2.1 Material: PVC
 2.2 Wall Thickness: .010” nom.
 2.3 Color code: 1-Black, 2-Red

 JACKET

 3.1 Material: PVC
 3.2 Wall Thickness: .015 nom.
 3.3 OD: .150” nom.
 3.4 Color: Gray
 3.5 Ripcord under jacket
 3.6 Markings: PAIGE 454666AGR E191596
        20/2C (UL) TYPE CMR/FPLR “RoHS
        COMPLIANT” ASCENDING / DESCENDING
        FOOTAGE MARKINGS EVERY TWO FEET

 ELECTRICAL PROPERTIES

 4.1 Temperature: -20 ̊C to 75 ̊C
 4.2 Voltage: 300 Volt
 4.3 Capacitance: 26 pF/ft nom @ 1 MHz
 4.4 DC Resistance: 10.2 Ohms/M’ @ 20 ̊C

 PUT-UPS:

 5.1 1000’ Box
 5.2 Weight: 14 lbs / 1000’

 SCOPE:

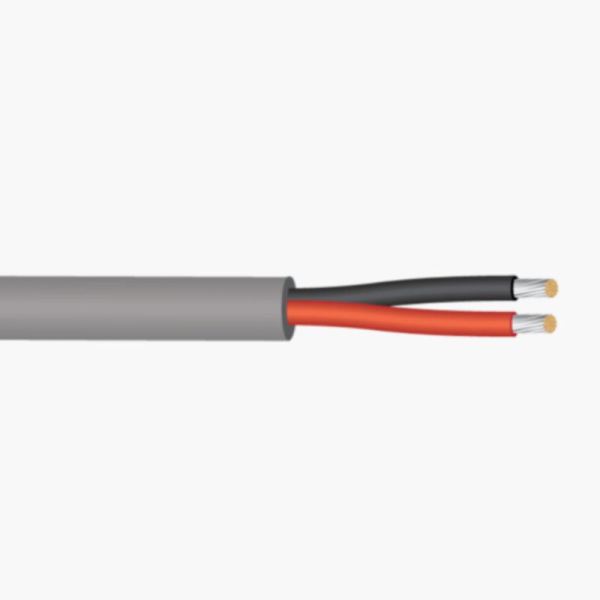

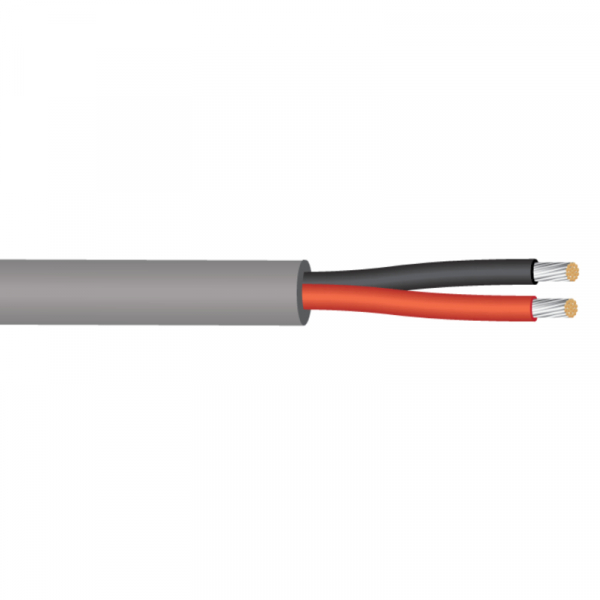

 This cable consists of 2 conductors 20 AWG stranded bare copper; color-coded PVC insulation; overall gray PVC Jacket.

 Type CMR/FPLR

 UL Standards 444 & 1424

 NEC Articles 760 & 800

 UL 1666 Riser

 CSFM
