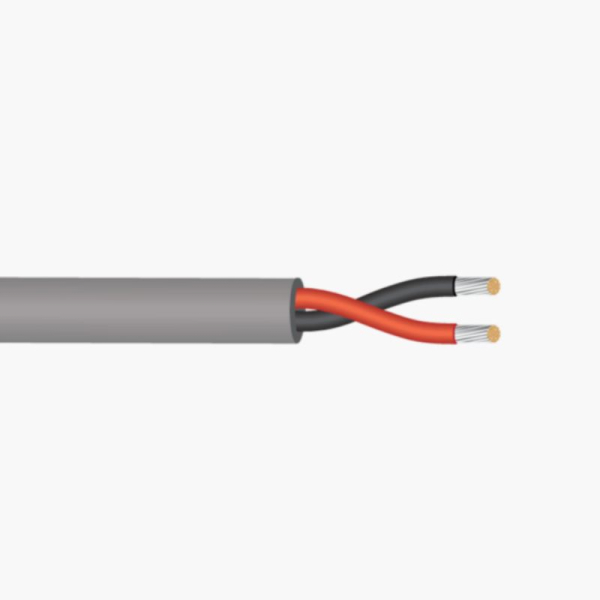

Paige 454656TC 16AWG-2C Twisted Pair, Tin Platted Control Cable

 CONSTRUCTION PARAMETERS

 Conductor  :  16AWG tinned copper

 Stranding  :  19/29

 Insulation Material  :  PVC

 Nom. Insulation Thickness  :  0.010"

 Insulated Conductor Diameter  :  0.079"

 Number of Conductors  :  2

 Nom. Lay Length :  Parallel

 Jacket Material  :  PVC

 Jacket Thickness  :  0.015"

 Nom. Overall Cable Diameter  :  0.199"

 Approximat Cable Weight (lbsJKft.)  :  26

 Flame Rating  :  UL 1581 vertical tray flame test.

 ELECTRICAL PROPERTIES

 Nom. DC Resistance per Conductor@ 2o°C :  4.02 Ohms/Kft. nom.

 Capacitance Between Conductors @ 1 KHz  :  35 pF/ft. nom.

 Operating Voltage  :  300 V RMS max.

 Temperature Rating  :  -20DegC to 60 DegC

 Insulation Colors  :  Black and Red.

 Jacket Color  :  Gray

 Legend (Surface Ink Print)  :  ****FT Paige USA 454656TC 16/2c STR CM ETL( c )ETL

 4000479 75c ROHS COMPLIANT DC 0119 ZONE 0 1 2 3 4 5 6 7 8 9

 DESCRIPTION:   2/16 Stranded CM

 CONSTRUCTION: This cable consists of two tinned copper insulated conductors with an overall extruded jacket.

 APPROVALS:  ETL cETL UL Standard 13 and UL 444, NEC Articles 800 CM.

 APPLICATION:   Communications Cable.
