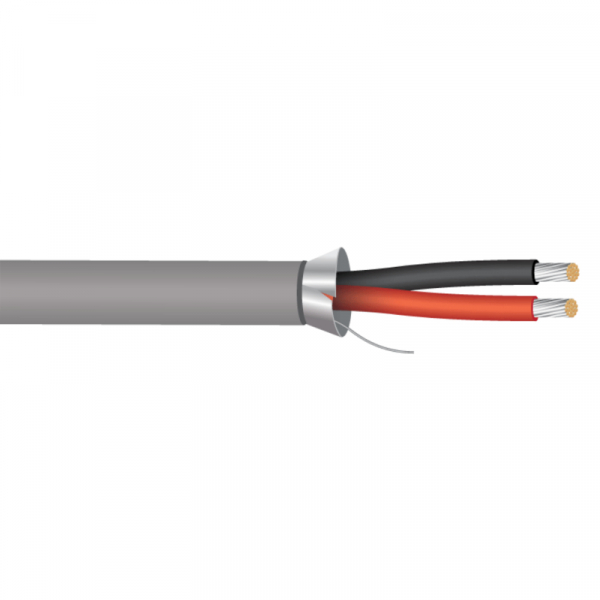

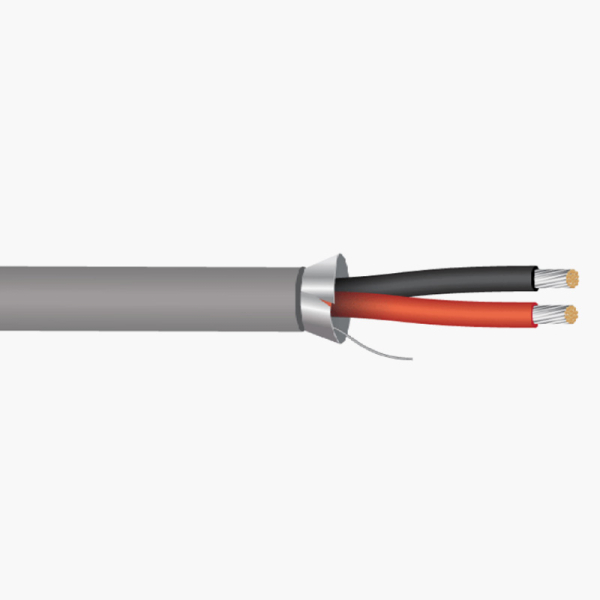

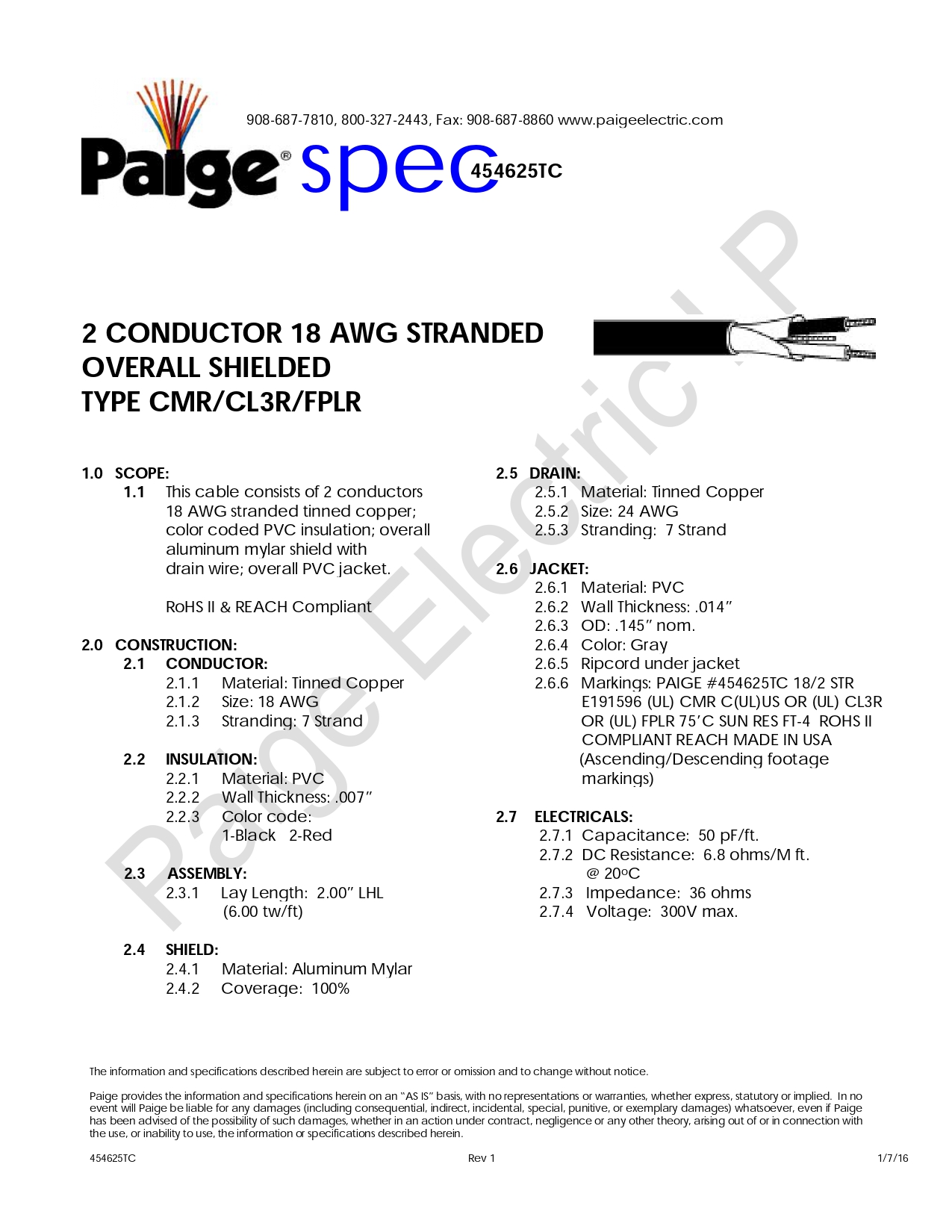

Paige 454625TC 18AWG-2C Tin Platted Screened Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 18 AWG
 1.3 Stranding: 7 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .007”
 2.3 Color code:
          1-Black 2-Red

 3. Assembly

 3.1 Lay Length: 2.00” LHL
                         (6.00 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Stranding: 7 Strand

 6. Jacket

 6.1 Material: PVC
 6.2 Wall Thickness: .014”
 6.3 OD: .145” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #454625TC 18/2 STR E191596 (UL) CMR C(UL)US OR (UL) CL3R
                          OR (UL) FPLR 75’C SUN RES FT-4 ROHS II COMPLIANT REACH MADE IN USA
                          (Ascending/Descending footage

 7. Electricals

 7.1 Capacitance: 50 pF/ft.
 7.2 DC Resistance: 6.8 ohms/M ft.@ 20DegC
 7.3 Impedance: 36 ohms
 7.4 Voltage: 300V max.

 Scope

 This cable consists of 2 conductors 18 AWG stranded tinned copper;color-coded PVC insulation; overall

 aluminum mylar shield with drain wire; overall PVC jacket

 RoHS II & REACH Compliant

 Application

 Communication Cable
