CABLE CONSTRUCTION
1. Conductors
1.1 Material: Bare Copper
1.2 Size: 18 AWG
1.3 Construction: 7 Strand
2. Insulation
2.1 Material: PVC
2.2 Wall Thickness: .015”
2.3 Color code: 1-Black, 2-Red
3. Assembly
3.1 Lay Length: 3.00” LHL (4.00 tw/ft)
4. Shield
4.1 Material: Aluminum Mylar
4.2 Coverage: 100%
5. Drain
5.1 Material: Tinned Copper
5.2 Size: 24 AWG
5.3 Construction: 7 Strand
6. Jacket
6.1 Material: PVC
6.2 Wall Thickness: .020”
6.3 OD: .193” nom.
6.4 Color: Gray
6.5 Ripcord: Yes
6.6 Markings: PAIGE 454625AGR 18AWG 2C STR E191596 (UL) CMR C(UL)US OR (UL)
CL3R OR (UL) FPLR 75’C SUN RES FT-4 ROHS II COMPLIANT MADE IN USA
(Ascending/Descending footage markers)
7. Electrical Properties
7.1 Capacitance: 35 pF/ft.
7.2 Impedance: 51 ohms
7.3 DC Resistance: 6.6 Ohms/M ft.@ 20oC
7.4 Voltage: 300 Volts max.

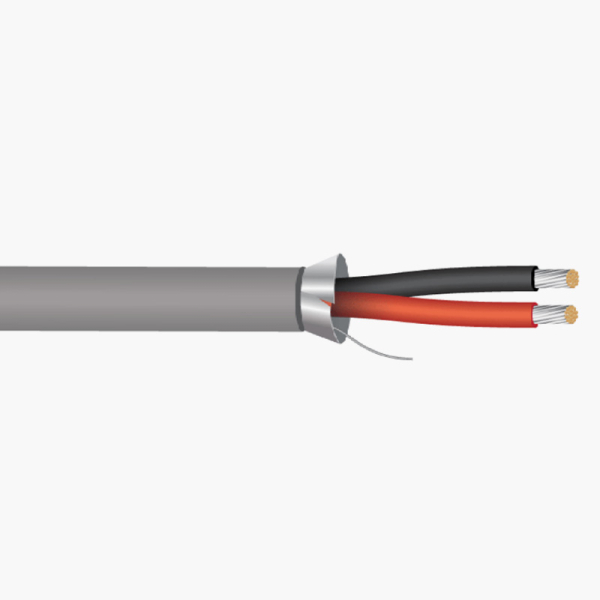

Scope
This cable consists of 2 conductors 18 AWG stranded bare copper; color-
coded PVC insulation; overall aluminum mylar shield with drain wire;
overall PVC jacket.
RoHS II & REACH Compliant
Weight :
Dimetion :
Cable in one drum:
Pallet weight :
Total net weight in cluding both :
