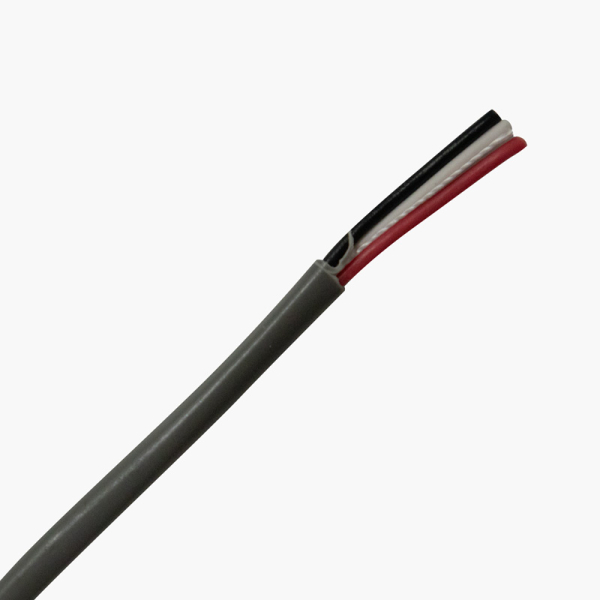

Paige 454618AGR 20AWG-3C Stranded, Unshielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 20 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: PVC
 2.2 Wall Thickness: .008”
 2.3 Color code:
       1-Black
       2-White
       3-Red

 3. Cabling Overall Lay

 3.1 2.5” left hand lay

 4. Jacket

 4.1 Material: PVC
 4.2 Wall Thickness: .015”
 4.3 OD: .142” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #454618AGR E191596 20AWG 3C (UL) TYPE CL3R/FPLR OR c(UL)us
       TYPE CMR ROHS COMPLIANT MADE IN USA (Ascending/Descending footage markers)

 5. Electrical Properties

 5.1 Capacitance: 30 pF/ft.
 5.2 DC Resistance: 10.30 Ohms/M ft.
       @ 20oC
 5.3 Voltage: 300 Volts

Scope:

 This cable consists of 3 conductors 20 AWG stranded bare copper; color-coded PVC insulation;
 overall PVC jacket.
 RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
