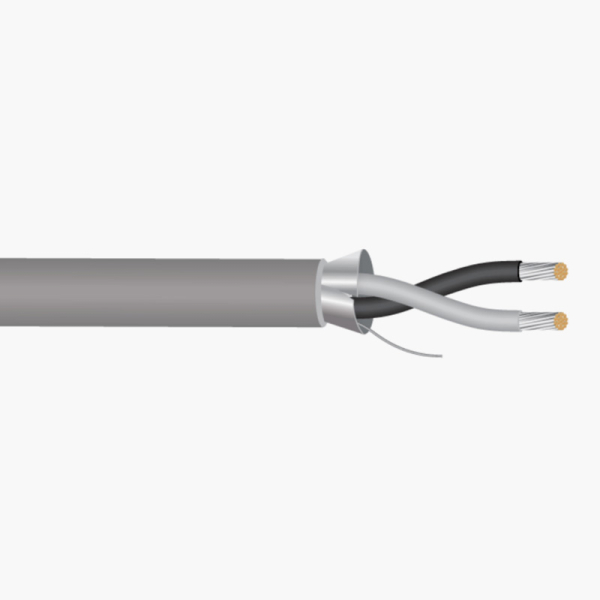

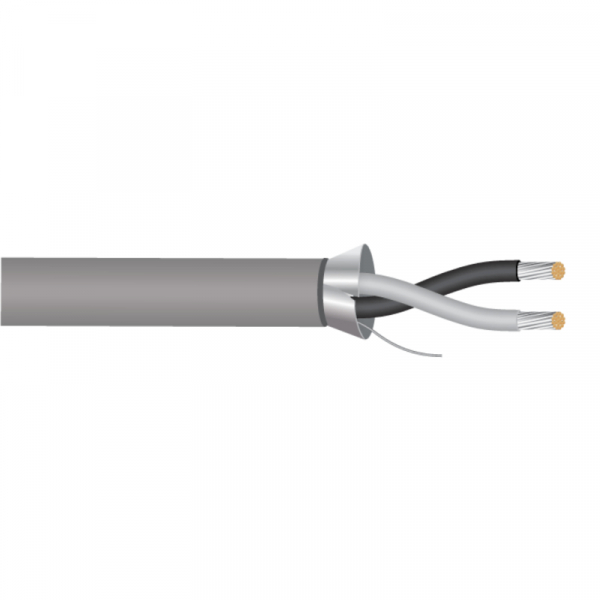

Paige 4546001AGR 24AWG-1 Pair Stranded, Shielded, PVC Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Tinned Copper
 1.2 Size: 24 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Foamed Polyethylene
 2.2 Wall Thickness: .015”
 2.3 Color code:
                       1-Black
                       2-Red

 3. Shield

 3.1 Material: Aluminum Mylar Tape
 3.2 Coverage: 100%

 4. Drain

 4.1 Material: Tinned Copper
 4.2 Size: 24 AWG
 4.3 Construction: 7 Strand

 5. Jacket

 5.1 Material: PVC
 5.2 Wall Thickness: .023”
 5.3 OD: .157” nom.
 5.4 Color: Gray
 5.5 Ripcord under jacket
 5.6 Markings: “PAIGE 4546001AGR E191596 24AWG 2C OAS (UL) TYPE CM C(UL)US
       75’C ROHS II COMPLIANT REACH MADE IN USA” (Ascending/Descending Sequential Footage Markers)

 6. Electricals

 6.1 Operating Voltage: 300V max.
 6.2 Impedance: 100 ohms +/- 10%
 6.3 Capacitance: 13.25 pF/ft. (conductor to conductor)
 6.4 DC Resistance: 23.1 ohms/M ft. @ 20oC

 Scope

 This cable consists of 2 conductors 24 AWG stranded tinned copper; color-coded foamed Polyethylene insulation;

 overall aluminum Mylar shield with drain wire; overall PVC jacket. Type CM c(UL)us

 RoHS II & REACH Compliant Made in USA

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
