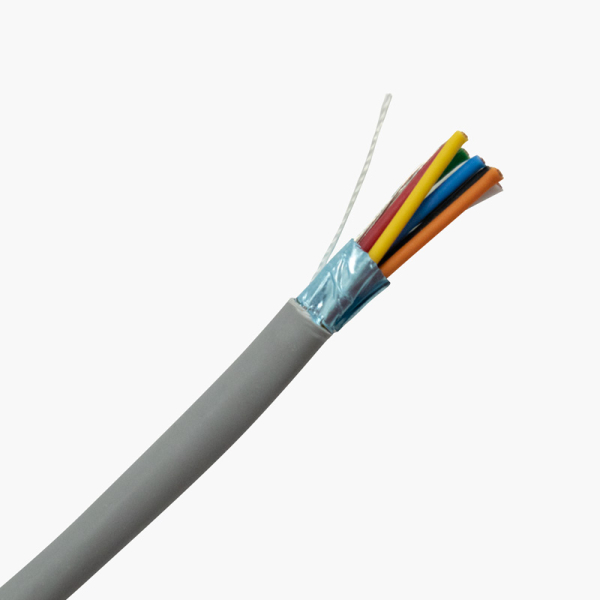

CABLE CONSTRUCTION
1. Conductors
1.1 Material: Bare Copper
1.2 Size: 22 AWG
1.3 Construction: 7 Strand
2. Insulation
2.1 Material: Polyethylene
2.2 Wall Thickness: .008”
2.3 Color code:
1-Black 7-Orange
2-Red 8-Yellow
3-White
4-Green
5-Brown
6-Blue
3. Assembly
3.1 Lay Length: 2.25” LHL nom.
(5.33 tw/ft)
4. Shield
4.1 Material: Aluminum Mylar Tape
4.2 Coverage: 100%
5. Drain
5.1 Material: Tinned Copper
5.2 Size: 24 AWG
5.3 Construction: 7 Strand
6. Jacket
6.1 Material: Low Smoke Zero Halogen Polyolefin
6.2 Wall Thickness: .016”
6.3 OD: .182” nom.
6.4 Color: Gray
6.5 Ripcord under jacket
6.6 Markings: PAIGE #454506FE 22AWG 8C SHLD 75’C 300V LSZH RoHS II COMPLIANT
REACH MADE IN USA (Ascending/Descending footage markings)
7. Electricals
7.1 Impedance: 66 ohms +/- 10%
7.2 Capacitance: 17 pF/ft. +/- 10%
7.3 DC Resistance: 16.56 ohms/M ft. @ 20oC
7.4 Voltage: 300 Volt max.
Scope
This cable consists of 8 conductors 22 AWG stranded bare copper; color- coded Polyethylene insulation; overall
aluminum Mylar shield with drain wire; overall low smoke zero halogen Polyolefin jacket.
RoHS II & REACH Compliant
Weight :
Dimetion :
Cable in one drum:
Pallet weight :
Total net weight in cluding both :
