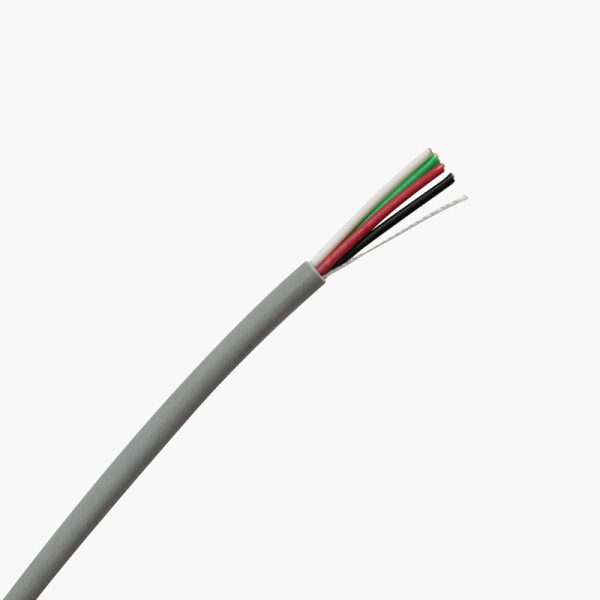

Paige 454502UE 22AWG-4C Stranded, Unshielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyolefin
 2.2 Wall Thickness: .008”
 2.3 Color code:
              1-Black
              2-Red
              3-White
              4-Green

 3. Assembly

 3.1 Lay Length: 3.00”

 4. Jacket

 4.1 Material: Low Smoke Flame Retardant
        Zero Halogen Polyolefin
 4.2 Wall Thickness: .016”
 4.3 OD: .135” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #454502UE 22AWG 4C 75’C 300V LSZH ROHS II COMPLIANT
       MADE IN USA (Ascending/Descending footage markings)

 5. Electrical Properties

 5.1 Capacitance: 17 pF/ft.
 5.2 Impedance: 91 ohms
 5.3 DC Resistance: 16.6 ohms/M ft.
       @ 20DegC
 5.4 Voltage: 300 Volt max.

 Scope

 This cable consists of 4 conductors 22 AWG stranded bare copper; color-coded Polyolefin insulation; overall low

 smoke flame retardant zero halogen Polyolefin jacket.

 RoHS II & REACH Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
