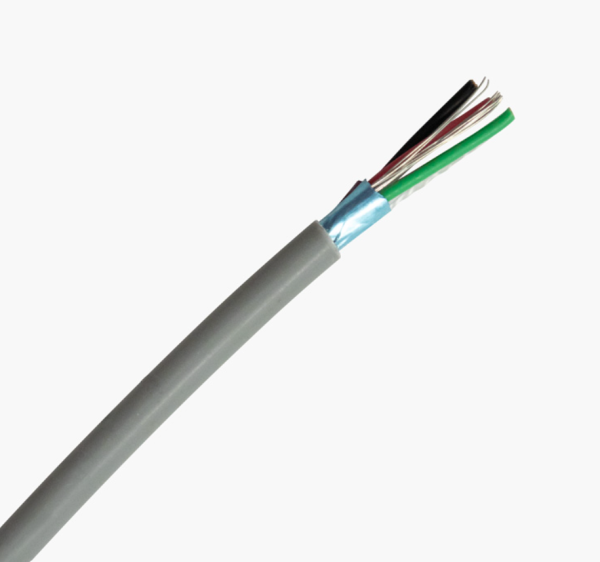

Paige 454502FE 22AWG-4C Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 22 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
                    1-Black
                    2-Red
                    3-White
                   4-Green

 3. Assembly

 3.1 Lay Length: 1.75” LHL nom. (6.86 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar Tape
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: Low Smoke Zero Halogen Polyolefin
 6.2 Wall Thickness: .016”
 6.3 OD: .142” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #454502FE 22AWG 4/C SHIELDED 75C 300V LSZH RoHS II
       COMPLIANT REACH MADE IN USA (Ascending/Descending footage markings)

 7. Electricals

 7.1 Impedance: 60 ohms +/- 10%
 7.2 Capacitance: 25 pF/ft. +/- 10%
 7.3 DC Resistance: 16.56 ohms/M ft.@ 20oC

 Scope

 This cable consists of 4 conductors 22 AWG stranded bare copper; color- coded Polyethylene insulation; overall

 aluminum Mylar shield with drain wire; overall low smoke zero halogen Polyolefin jacket.

 RoHS II & REACH Compliant
