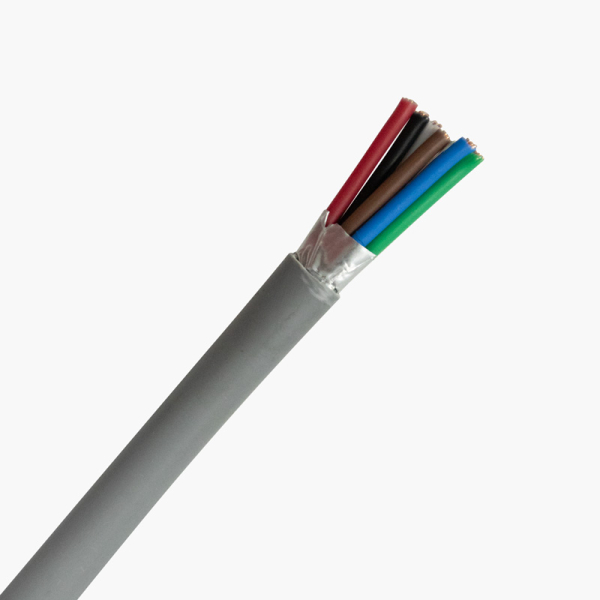

Paige 454304FE 18AWG-6C Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Stranding: 7 Strand

 2. Insulation

 2.1 Material: Polyolefin
 2.2 Wall Thickness: .008”
 2.3 Color Code: Black, Red, White,
        Green, Brown, Blue

 3. Lay Length

 3.1 2.75” LHL (4.36 Tw/Ft)

 4. Shield

 4.1 Material: Aluminum Mylar Tape
 4.2 Coverage: 100%

 5. Drain Wire

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Stranding: 7 Strand

 6. Jacket

 6.1 Material: Flame Retardant Low-
       Smoke Zero Halogen

 6.2 Wall Thickness: .015”
 6.3 O.D.: .215” nom.
 6.4 Ripcord: Yes
 6.5 Surface Print: PAIGE #454304FE LSZH 18AWG 6C SHIELDED 75’C
       300V ROHS II COMPLIANT REACH MADE IN USA
       (Ascending/Descending footage markers)
 6.6 Color: Gray

 7. Electricals

 7.1 Impedance: 58.5 ohms/M ft. +/- 10%
 7.2 Capacitance: 39.10 pF/ft +/- 10%
 7.3 DC Resistance: 6.49 ohms/M ft.@ 20oC
 7.4 Voltage: 300V max.

 Type

 This cable is composed of 6 conductors 18 AWG stranded bare copper conductor insulated with Polyolefin insulation and cabled
 with an aluminum mylar tape shield and a stranded tinned copper drain wire.
 A flame retardant low-smoke Zero Halogen jacket completes the package.
 ROHS II & REACH compliant.
