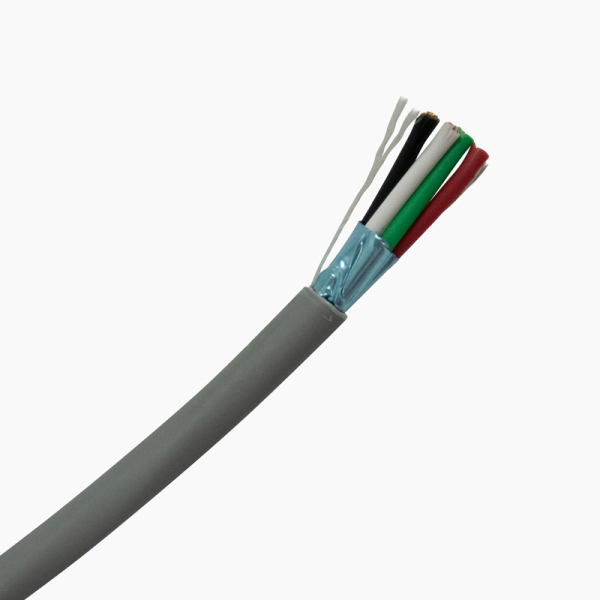

Paige 454302FE 18AWG-4C Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .008”
 2.3 Color code:
              1-Black
              2-Red
              3-White
              4-Green

 3. Lay Length

 3.1 2.25” LHL (5.33 Tw/Ft)

 4. Shield

 4.1 Material: Aluminum MylarTape
 4.2 Coverage: 100%

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: Low-Smoke Zero Halogen Polyolefin
 6.2 Wall Thickness: .016”
 6.3 OD: .181” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #454302FE 18AWG 4C SHLD 75’C 300V LSHZ ROHS II COMPLIANT
       REACH MADE IN USA (Ascending/Descending footage markings)

 7. Electricals

 7.1 Impedance: 49 ohms +/- 10%
 7.2 Capacitance: 31 pF/ft. +/- 10%
 7.3 DC Resistance: 6.6 ohms/M ft.@ 20oC
 7.4 Voltage: 300V max.

 Scope

 This cable consists of 4 conductors 18 AWG stranded bare copper; color-coded Polyethylene insulation; overall

 aluminum Mylar shield with drain wire; overall low-smoke zero halogen Polyolefin jacket.

 RoHS II & REACH Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
