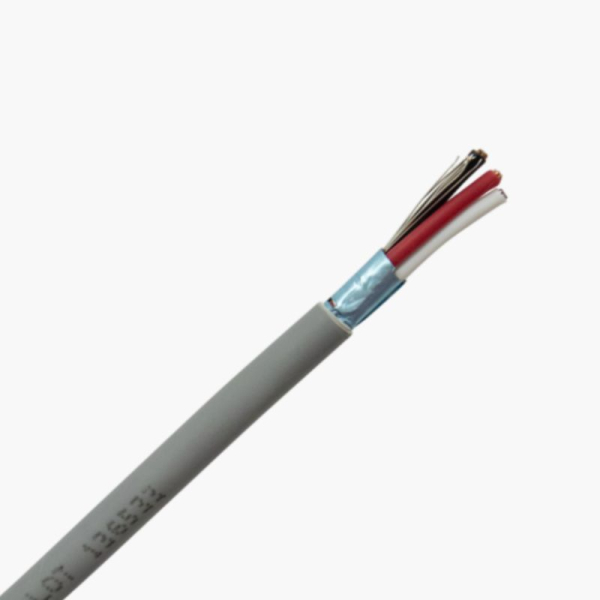

Paige 454301FE 18AWG-3C Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Stranding: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .010”
 2.3 Color Code: Black, Red, White

 3. Assembly

 3.1 Lay Length: 2.25” LHL (5.33 tw/ft)

 4. Shield

 4.1 Material: Aluminum Mylar Tape
 4.2 Coverage: 100%

 5. Drain Wire

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Stranding: 7 Strand

 6. Jacket Wacket

 6.1 Material: Low-Smoke Zero
 6.2 Halogen Polyolefin
 6.3 Wall Thickness: .020”
 6. 4 O.D.: .183” nom.
 6.5 Ripcord: Yes
 6.6 Surface Print: “PAIGE #454301FE LSZH 18AWG 3C SHLD 75’C 300V
       ROHS II COMPLIANT REACH MADE IN USA”
       (Ascending/Descending Footage Markers)
 6.7 Color: Gray

 7. Electricals

 7.1 Capacitance: 20.3 pF/m
 7.2 Impedance: 30.9 ohms +/- 15%
 7.3 DC Resistance: 19.2 ohms/km
 7.4 Operating Voltage: 300V max.

 Type

 This cable is composed of 3 conductors 18 AWG stranded bare copper conductor insulated with Polyethylene insulation
 and cabled with an aluminum mylar tape shield and a stranded tinned copper drain wire.
 A low-smoke Zero Halogen Polyolefin jacket completes the package. RoHS Compliant.

 Application

 Communication Cable
