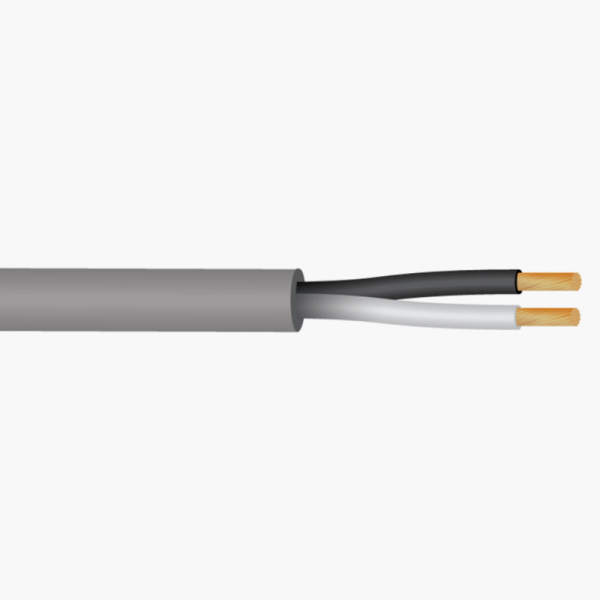

Paige 454300UE 18AWG-2C Stranded, Unshielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Polyethylene
 2.2 Wall Thickness: .010”
 2.3 Color code:
               1-Black
               2-Red

 3. Assembly

 3.1 Lay Length: 2.00” LHL (6.00 tw/ft)

 4. Jacket

 4.1 Material: Low-Smoke Zero Halogen Polyolefin
 4.2 Wall Thickness: .020”
 4.3 OD: .170” nom.
 4.4 Color: Gray
 4.5 Ripcord under jacket
 4.6 Markings: PAIGE #454300UE LSZH 18AWG 2C 75’C 300V ROHS II COMPLIANT
       REACH MADE IN USA(Ascending/Descending footage markings)

 5. Electricals

 5.1 Impedance: 99.6 ohms +/- 10%
 5.2 Capacitance: 15.4 pF/ft. +/- 10%
 5.3 DC Resistance: 6.60 ohms/M ft. @ 20DegC
 5.4 Voltage: 300 Volt max.

 Scope:

 This cable consists of 2 conductors 18 AWG stranded bare copper; color-coded Polyethylene insulation; overall

 low-smoke zero halogen Polyolefin jacket.

 RoHS II & REACH Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
