Paige 454300FE 18AWG-2C Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 18 AWG
 1.3 Construction: 7 Strand

 2. Insulation

 2.1 Material: Low Density
                        Polyethylene
 2.2 Wall Thickness: .010”
 2.3 Color code:
               1-Black
               2-Red

 3. Shield

 3.1 Material: Aluminum Mylar

 4. Drain

 4.1 Material: Tinned Copper
 4.2 Size: 20 AWG
 4.3 Construction: 7 Strand

 5. Jacket

 5.1 Material: Low Smoke Zero Halogen
                        Polyolefin
 5.2 Wall Thickness: .015”
 5.3 OD: .166” nom.
 5.4 Color: Gray
 5.5 Ripcord under jacket
 5.6 Markings: “PAIGE #454300FE LSZH 18AWG 2/C SHIELDED 75C 300V RoHS”
                          (Ascending/Descending footage markings)

 6. Voltage/Temperature

 6.1 300V / -20Deg to +75DegC

 Scope

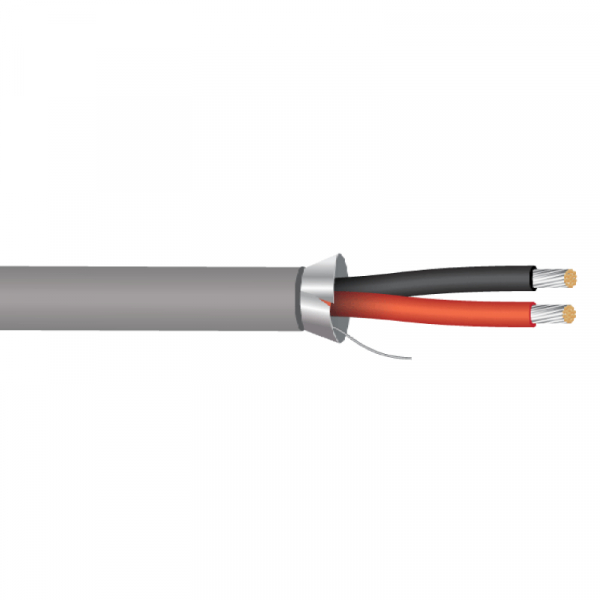

 This cable consists of 2 conductors 18 AWG stranded bare copper; color-coded low density Polyethylene

 insulation; overall aluminum Mylar shield with drain wire; overall low smoke zero halogen Polyolefin jacket.

 RoHS Compliant

 Halogen-free according to IEC 60754-1

 Non-dense smoke according to IEC

 61034-1 and 61034-2

 Non-corrosive gas according to IEC

 60754-2

 Flame Retardant according to IEC

 60332-1

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
