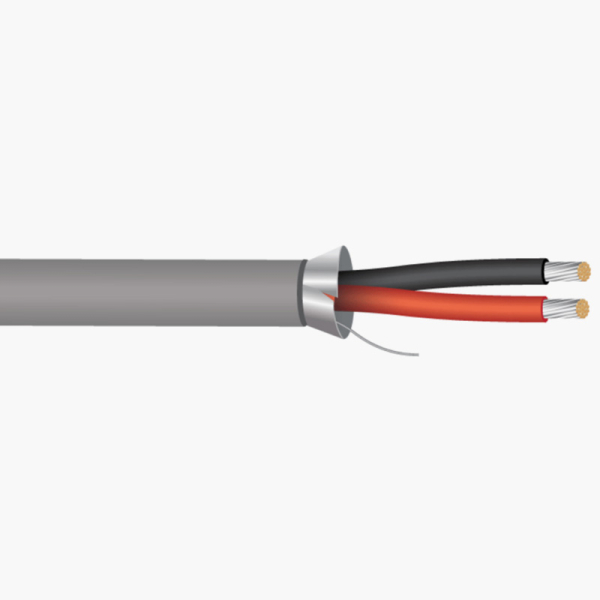

Paige 454200FE 16AWG-2C Stranded, Shielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductors

 1.1 Material: Bare Copper
 1.2 Size: 16 AWG
 1.3 Construction: 19 Strand

 2. Insulation

 2.1 Material: Low Density Polyethylene
 2.2 Wall Thickness: .010”
 2.3 Color code:
               1-Black
               2-Red

 3. Cablling Overall Lay

 3.1 3” left hand lay

 4. Shield

 4.1 Material: Aluminum Mylar

 5. Drain

 5.1 Material: Tinned Copper
 5.2 Size: 24 AWG
 5.3 Construction: 7 Strand

 6. Jacket

 6.1 Material: Low Smoke Zero Halogen Polyolefin
 6.2 Wall Thickness: .015” nom.
 6.3 OD: .187” nom.
 6.4 Color: Gray
 6.5 Ripcord under jacket
 6.6 Markings: PAIGE #454200FE LSZH 16AWG 2/C SHIELDED 75C 300V ROHS MADE IN
       USA (Ascending/Descending footage markings)

 7. Electrical Properties

 7.1 DC Resistance: 4.2 ohms/M ft.
 7.2 Voltage: 300 Volts
 7.3 Capacitance: (CDR-CDR) 76 pF/ft

 SCOPE:

 This cable consists of 2 conductors 16 AWG stranded bare copper; color- coded low density Polyethylene

 insulation; overall aluminum Mylar shield with drain wire; overall low smoke zero halogen Polyolefin jacket.

 RoHS Compliant

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
