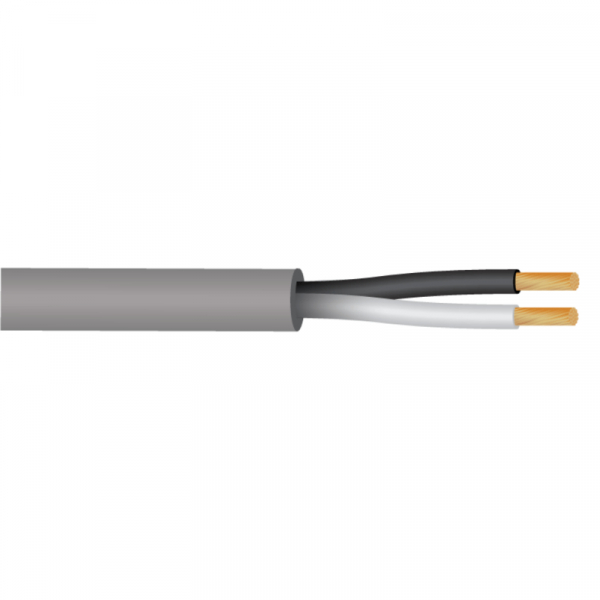

Paige 454100UE 14AWG-2C Solid, Unshielded, LSZH Cable

 CABLE CONSTRUCTION

 1. Conductor
 1.1 Material: Bare Copper
 1.2 Size: 14 AWG
 1.3 Stranding: 19 Strand

 2. Insulation

 2.1 Material: Low Density
 2.2 Polyethylene
 2.3 Wall Thickness: .014”
 2.4 Color Code: Black, White

 3. Jacket

 3.1 Material: Low Smoke Zero
 3.2 Halogen Polyolefin
 3.3 Wall Thickness: .015”
 3.4 O.D.: .228” nom.
 3.5 Ripcord: Yes
 3.6 Surface Print: “PAIGE #454100UE LSZH 14 AWG 2/C 75C 300V ROHS
                                  (Ascending/Descending Sequential footage markers)
 3.7 Color: Gray

 4. Electricals

 4.1 Voltage Rating: 300 Volts
 4.2 Temperature Rating: -20DegC - +75DegC

 5. Standards

 5.1 RoHS Compliant
 5.2 Halogen free according to IEC
 5.3 60754-1
 5.4 Non-dense smoke according to IEC 61034-1 and 61034-2
 5.5 Non-corrosive gas according to IEC 60754-2
 5.6 Flame retardant according to IEC 60332-1

 This cable is composed of 2 conductors 14 AWG stranded bare copper conductors insulated with

 low density Polyethylene insulation. A low-smoke Zero Halogen Polyolefin jacket completes the package.

 Weight :

 Dimetion :

 Cable in one drum:

 Pallet weight :

 Total net weight in cluding both :
